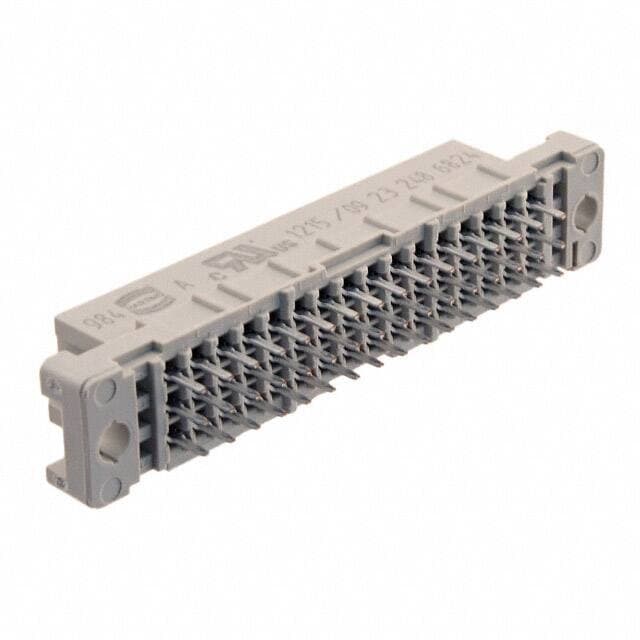

HARTING 09232486824

Manufacturer No:

09232486824

Manufacturer:

HARTING

Package:

Description:

CONN DIN RCPT 48POS PCB

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

09232486824 information

HARTING 09232486824 technical specifications, attributes, parameters and parts with similar specifications to HARTING 09232486824.

Type
Parameter

Factory Lead Time
9 Weeks

Contact Plating
Gold

Mount
Through Hole

Mounting Type
Through Hole

Housing Material
Thermoplastic

Material - Insulation
Thermoplastic, Glass Filled

Contact Materials
Gold, Nickel

Packaging
Bulk

Series
DIN 41612

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Receptacle, Female Sockets

Number of Positions
48

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Number of Rows
3

Gender
Receptacle

MIL Conformance
NO

DIN Conformance
YES

IEC Conformance
NO

Filter Feature
NO

Option
GENERAL PURPOSE

Pitch
0.100 2.54mm

Total Number of Contacts
48

Orientation
Straight

Depth
10.5mm

Style
2C

Number of Positions Loaded
All

Current Rating
2A

Reference Standard
UL

Reliability
COMMERCIAL

Number Of PCB Rows
3

PCB Contact Pattern
RECTANGULAR

UL Flammability Code
94V-0

Rated Current (Signal)
2A

Contact Resistance
20mOhm

Insulation Resistance
10000000000Ohm

Polarization Key
POLARIZED HOUSING

Dielectric Withstanding Voltage
1000VAC V

Durability
400 Cycles

Mating Contact Row Spacing
0.1 inch

Level, Class
2

Name of Rows Loaded
A,B,C

Height
11.6mm

Download datasheets and manufacturer documentation for HARTING 09232486824.

ConflictMineralStatement:

hartingelektronik-09454521910-conflictmineralstatement-8953.pdf

Product Description:

The HARTING 09232486824 is a high-quality, lead-free, and RoHS3 compliant backplane connector designed to meet the DIN 41612 standard. This receptacle, female socket connector features a thermoplastic housing with a gold-plated, nickel-based contact material, ensuring reliable and durable connections.

Features:

Gold-plated, nickel-based contact material for low contact resistance (20mOhm)
High current rating of 2A
Conforms to DIN 41612 standard
Thermoplastic housing with a flammability rating of UL94 V-0
Insulation resistance of 10000000000Ohm
Operating temperature range of -55°C to 125°C
Mounting type: Through Hole
PCB contact pattern: Rectangular
Total number of contacts: 48

Applications:

Primary applications: Industrial automation, medical devices, and telecommunications equipment
Secondary applications: Aerospace, automotive, and consumer electronics

Alternative Parts:

HARTING 09232486823 (male header connector)
HARTING 09232486825 (mixed contact connector)

Embedded Modules:

Industrial control systems
Medical device interfaces
Telecommunications equipment

FAQs:

Q: What is the contact resistance of this connector? A: The contact resistance is 20mOhm.

Q: What is the current rating of this connector? A: The current rating is 2A.

Q: Is this connector lead-free? A: Yes, this connector is lead-free.

Q: What is the flammability rating of this connector? A: The flammability rating is UL94 V-0.

Q: What is the operating temperature range of this connector? A: The operating temperature range is -55°C to 125°C.

Q: What is the mounting type of this connector? A: The mounting type is Through Hole.

Q: What is the PCB contact pattern of this connector? A: The PCB contact pattern is Rectangular.

Q: How many contacts does this connector have? A: This connector has 48 contacts.

Q: Is this connector RoHS3 compliant? A: Yes, this connector is RoHS3 compliant.
