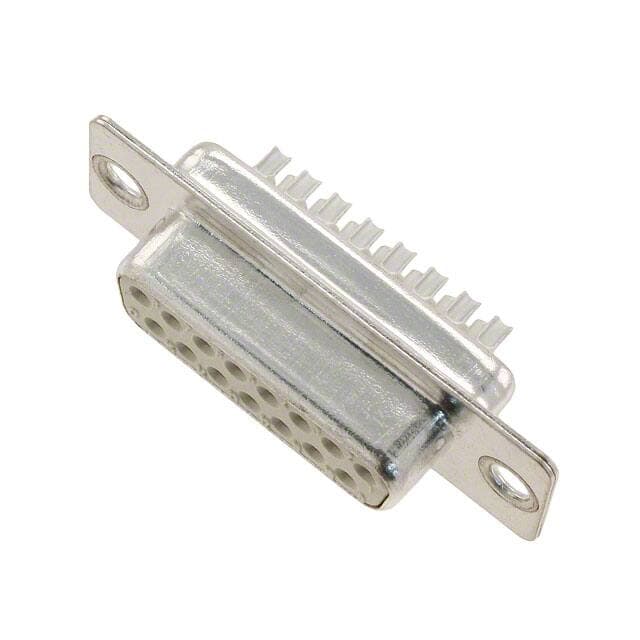

HARTING 09670154704

Manufacturer No:

09670154704

Manufacturer:

HARTING

Package:

Description:

D-Sub Receptacle, Female Sockets Receptacle Signal Solder Cup 2 DA A Free Hanging (In-Line) Copper Alloy Steel

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

09670154704 information

HARTING 09670154704 technical specifications, attributes, parameters and parts with similar specifications to HARTING 09670154704.

Type
Parameter

Factory Lead Time
4 Weeks

Contact Material
Copper Alloy

Contact Plating
Gold

Mount
Free Hanging, Panel

Mounting Type
Free Hanging (In-Line)

Dielectric Material
Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Housing Material
Polybutylene

Body Material
Metal

Shell Material, Finish
Steel

Operating Temperature
-40°C~85°C

Packaging
Bulk

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
15

Termination
Solder Cup

ECCN Code
EAR99

Connector Type
Receptacle, Female Sockets

Number of Rows
2

Gender
Receptacle

HTS Code
8536.69.40.30

Subcategory
D Type Connectors

Voltage - Rated DC
125V

Contact Finish - Mating
NOT SPECIFIED

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Signal

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
7.5A

Pitch
2.77mm

Total Number of Contacts
15

Orientation
Straight

Current Rating
7A

Shell Finish
TIN

Reference Standard
UL

UL Flammability Code
94V-0

Empty Shell
NO

Working Voltage
125V

Contact Resistance
10mOhm

Wire Gauge
20 AWG

Flange Feature
Housing/Shell (Unthreaded)

Body/Shell Style
PLUG

Connector Style
D-Sub

Number of Ports
1

Body Plating
Tin

Download datasheets and manufacturer documentation for HARTING 09670154704.

Datasheets:

hartingelektronik-09670154704-datasheets-1214.pdf

hartingelektronik-09670154704-datasheets-1215.pdf

ConflictMineralStatement:

hartingelektronik-09454521910-conflictmineralstatement-8953.pdf

09670154704 Overview

It comes in Receptacle, Female Sockets packaging.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Bulk case for packaging the product.A variety of tasks can be managed through its 1 ports.Free Hanging, Panel is used to mount the part.There are no terminations on the chip.In this case, the device operates at -40°C~85°C Operating Temperature.

09670154704 Features

15 basic kinds of terminations

09670154704 Applications

There are a lot of HARTING
09670154704 D-Sub Connectors applications.

Transportation
Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications

User Guide
