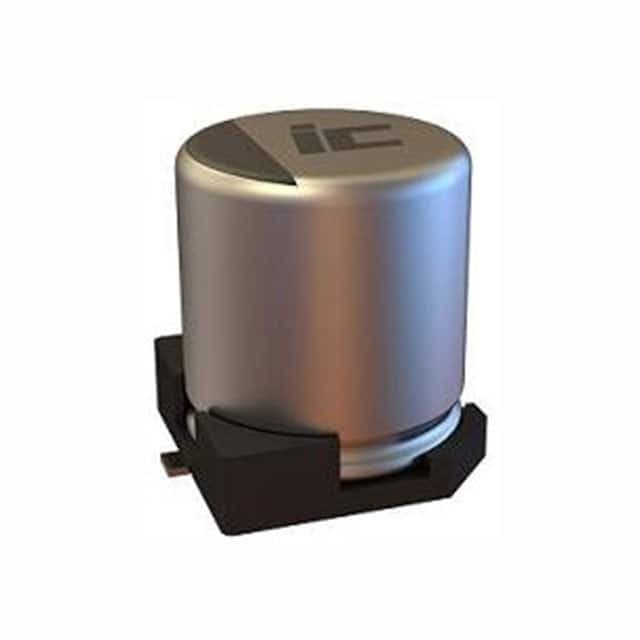

Illinois Capacitor 106SMH035M

Manufacturer No:

106SMH035M

Manufacturer:

Illinois Capacitor

Package:

Radial, Can - SMD

Description:

SMH 10?F Capacitor ±20% Bulk Surface Mount 30mA 0.197Dia 5.00mm -55°C~105°C Polar Radial, Can - SMD

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

106SMH035M information

Illinois Capacitor 106SMH035M technical specifications, attributes, parameters and parts with similar specifications to Illinois Capacitor 106SMH035M.

Type
Parameter

Factory Lead Time
22 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
Radial, Can - SMD

Terminal Shape
FLAT

Dielectric Material
ALUMINUM (WET)

Surface Mount Land Size
0.209Lx0.209W 5.30mmx5.30mm

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
SMH

Published
2005

Size / Dimension
0.197Dia 5.00mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

Capacitance
10?F

Voltage - Rated DC
35V

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Size Code
1717

Lifetime @ Temp
1000 Hrs @ 105°C

Leakage Current
0.0035mA

Ripple Current
30mA

Polarization
Polar

Life (Hours)
1000 hours

Tan Delta
0.14

Ripple Current @ Low Frequency
30mA @ 120Hz

Ripple Current @ High Frequency
45mA @ 100kHz

Diameter
5mm

Height Seated (Max)
0.217 5.50mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Illinois Capacitor 106SMH035M.

Datasheets:

illinoiscapacitor-105smh050mhr-datasheets-2797.pdf

Environmental Information:

illinoiscapacitor-827avg016mfbj-environmentalinformation-6815.pdf

106SMH035M Overview

Full charge should result in a ripple current of 45mA @ 100kHz.To fully perform its function, 23.21Ohm @ 120Hz needs the equivalent series resistance.If the charge is low, ripple current is 30mA @ 120Hz.Keep your seated height below 0.217 5.50mm.A voltage of 35V DC is used to operate this capacitor.The maximum efficiency can be achieved by maintaining -55°C~105°C as the operating temperature.

106SMH035M Features

the ripple current is 45mA @ 100kHz.
the ripple current is 30mA @ 120Hz.
voltage - Rated DC of 35V
an operating temperature of -55°C~105°C

106SMH035M Applications

There are a lot of Illinois Capacitor
106SMH035M applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
