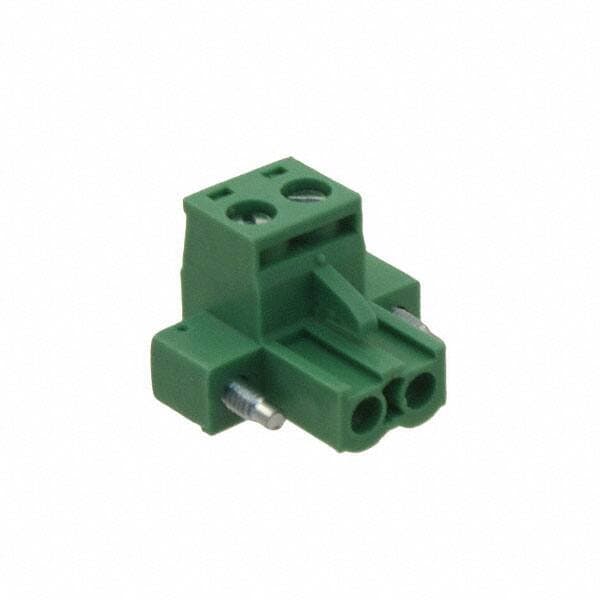

Amphenol 20020002-G021B01LF
Manufacturer No:
20020002-G021B01LF
Manufacturer:
Package:
Description:
Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets 01-500 Thermoplastic Resin Tin Copper Alloy
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
20020002-G021B01LF information
Amphenol 20020002-G021B01LF technical specifications, attributes, parameters and parts with similar specifications to Amphenol 20020002-G021B01LF.
- Type
- Parameter
- Factory Lead Time
- 10 Weeks
- Contact Material
- Copper Alloy
- Contact Plating
- Tin
- Mount
- Cable, Free Hanging
- Mounting Type
- Free Hanging (In-Line)
- Housing Material
- Thermoplastic Resin
- Operating Temperature
- -40°C~115°C
- Packaging
- Bulk
- Series
- 01-500
- Feature
- Mating Flange, Retention Latches (Non-Wire Side)
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Screw
- Connector Type
- Terminal Block
- Type
- Plug, Female Sockets
- Number of Positions
- 2
- Max Operating Temperature
- 115°C
- Min Operating Temperature
- -40°C
- Color
- Green
- Number of Rows
- 1
- Voltage - Rated
- 300V
- Pitch
- 0.197 5.00mm
- Orientation
- Right Angle
- Depth
- 18.2mm
- Current Rating
- 12A
- Termination Style
- Screw - Rising Cage Clamp
- Number of Contacts
- 2
- Housing Color
- Green
- Voltage
- 300V
- Number of Circuits
- 2
- Max Voltage Rating (AC)
- 300V
- Max Current Rating
- 12A
- Number of Levels
- 1
- Current
- 12A
- Wire Gauge (Max)
- 24 AWG
- Wire Gauge (Min)
- 12 AWG
- Wire/Cable Gauge
- 24 AWG
- Contact Mating Finish
- Tin
- Voltage - UL
- 300V
- Wire Gauge or Range - AWG
- 12-24 AWG
- Current - UL
- 12A
- Torque - Screw
- 0.56 Nm (5.0 Lb-In)
- Positions Per Level
- 2
- Plug Wire Entry
- 180°
- Wire Gauge or Range - mm²
- 1-2.5mm2
- Wire Strip Length
- 7-8mm
- Number of Positions Per Level
- 2
Download datasheets and manufacturer documentation for Amphenol 20020002-G021B01LF.
20020002-G021B01LF Overview
Packaging for this item is Terminal Block.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the 01-500 Series.You should use it when it's below 115°C.A minimum temperature of -40°C is required for the operation of this device.In many ways, its Mating Flange, Retention Latches (Non-Wire Side) feature makes it more powerful.Cable, Free Hanging is used to mount the part.A total of 2 circuits are present in the part.In this case, the device operates at -40°C~115°C Operating Temperature.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
20020002-G021B01LF Features
01-500 series
20020002-G021B01LF Applications
There are a lot of Amphenol Anytek
20020002-G021B01LF Terminal Blocks applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
