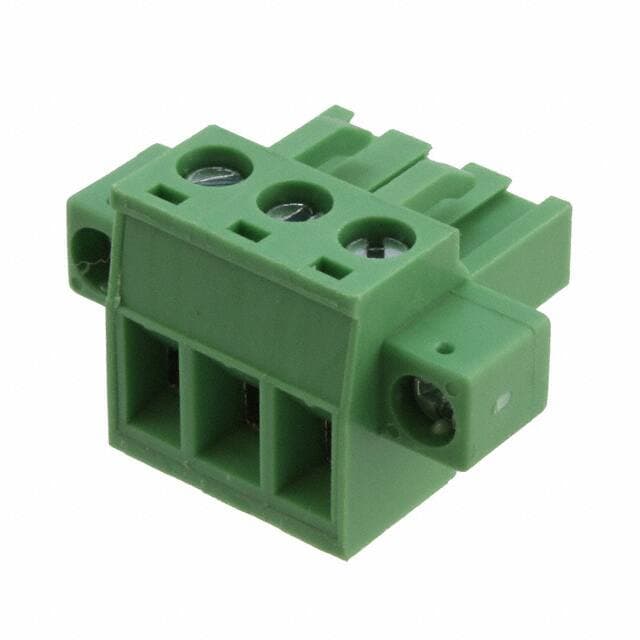

Amphenol 20020003-H031B01LF
Manufacturer No:
20020003-H031B01LF
Manufacturer:
Package:
Description:
Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets 01-508 Thermoplastic Resin Tin Copper Alloy
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
20020003-H031B01LF information
Amphenol 20020003-H031B01LF technical specifications, attributes, parameters and parts with similar specifications to Amphenol 20020003-H031B01LF.
- Type
- Parameter
- Factory Lead Time
- 21 Weeks
- Contact Material
- Copper Alloy
- Mount
- Cable, Free Hanging
- Mounting Type
- Free Hanging (In-Line)
- Housing Material
- Thermoplastic Resin
- Operating Temperature
- -40°C~115°C
- Packaging
- Bulk
- Series
- 01-508
- Published
- 2011
- Feature
- Mating Flange, Retention Latches (Non-Wire Side)
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Termination
- Screw
- ECCN Code
- EAR99
- Connector Type
- Terminal Block
- Type
- Plug, Female Sockets
- Color
- Green
- Number of Rows
- 1
- Voltage - Rated
- 300V
- Pitch
- 0.200 5.08mm
- Orientation
- Right Angle
- Depth
- 18.2mm
- Insulation Height
- 0.594 15.09mm
- Current Rating
- 12A
- Number of Contacts
- 3
- Voltage
- 300V
- Max Voltage Rating (AC)
- 300V
- Number of Levels
- 1
- Current
- 12A
- Wire Gauge (Max)
- 24 AWG
- Wire Gauge (Min)
- 12 AWG
- Wire/Cable Gauge
- 24 AWG
- Contact Mating Finish
- Tin
- Number of Decks
- 1
- Wire Gauge or Range - AWG
- 12-24 AWG
- Torque - Screw
- 0.56 Nm (5.0 Lb-In)
- Number of Ways
- 3
- Safety Approval
- UL
- Plug Wire Entry
- 180°
- Wire Gauge or Range - mm²
- 1-2.5mm2
- Wire Strip Length
- 7-8mm
- Screw Size
- M3
- Wire Cross Section
- 2.5 mm2
- Max Supply Voltage (AC)
- 300V
- Length
- 25.44mm
- Material Flammability Rating
- UL94 V-0
- REACH SVHC
- No SVHC
Download datasheets and manufacturer documentation for Amphenol 20020003-H031B01LF.
20020003-H031B01LF Overview
The product is packaged in Terminal Block.This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Bulk case is necessary to package the product.There is a product in the 01-508 Series.There are a number of advantages to its Mating Flange, Retention Latches (Non-Wire Side) feature.Part Cable, Free Hanging is mounted to the part.As a result, the device runs at -40°C~115°C Operating Temperature.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.
20020003-H031B01LF Features
01-508 series
20020003-H031B01LF Applications
There are a lot of Amphenol Anytek
20020003-H031B01LF Terminal Blocks applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
