JST 20FMN-SMT-A-TF(LF)(SN)

Manufacturer No:

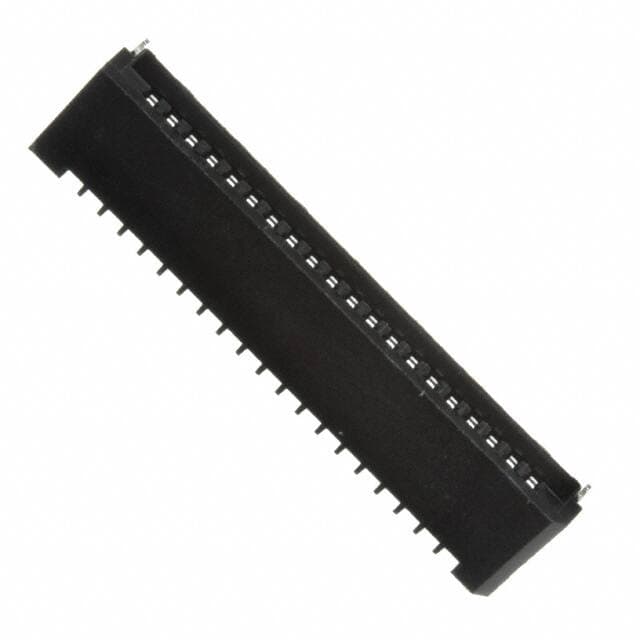

20FMN-SMT-A-TF(LF)(SN)

Manufacturer:

Package:

Description:

FMN Series FFC Contacts, Top Tape & Reel (TR) 0.039 1.00mm Solder 20 Positions Surface Mount, Right Angle Tin -25°C~85°C 0.5A

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

20FMN-SMT-A-TF(LF)(SN) information

JST 20FMN-SMT-A-TF(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST 20FMN-SMT-A-TF(LF)(SN).

Type
Parameter

Factory Lead Time
16 Weeks

Contact Material
Phosphor Bronze

Mount
Surface Mount

Mounting Type
Surface Mount, Right Angle

Housing Material
Polyamide (PA6T), Nylon 6T

Operating Temperature
-25°C~85°C

Packaging
Tape & Reel (TR)

Series
FMN

Published
2010

JESD-609 Code
e3

Feature
Low Insertion Force (LIF)

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Number of Positions
20

Number of Rows
1

Voltage - Rated
50V

Additional Feature
SIDE ENTRY

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Current Rating (Amps)
0.5A

Pitch
0.039 1.00mm

Total Number of Contacts
20

Current Rating
500mA

Contact Finish
Tin

Mating Information
NO

Contact Gender
FEMALE

UL Flammability Code
94V-0

Housing Color
Black

Flat Flex Type
FFC

Connector/Contact Type
Contacts, Top

Cable End Type
Straight

Height Above Board
0.118 3.00mm

FFC, FCB Thickness
0.30mm

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-0

Download datasheets and manufacturer documentation for JST 20FMN-SMT-A-TF(LF)(SN).

Datasheets:

jstsalesamericainc-10fmnsmtatflfsn-datasheets-2147.pdf

20FMN-SMT-A-TF(LF)(SN) Overview

There is a Surface Mount, Right Angle mounting type for the device.This product is packaged in a case marked Tape & Reel (TR).Product number FMN belongs to the FMN Series.Further, there are features such as SIDE ENTRY, to name only a few.In many ways, it is more powerful due to its Low Insertion Force (LIF) feature.There is a Surface Mount mount on the part.This device operates at a temperature of -25°C~85°C.
