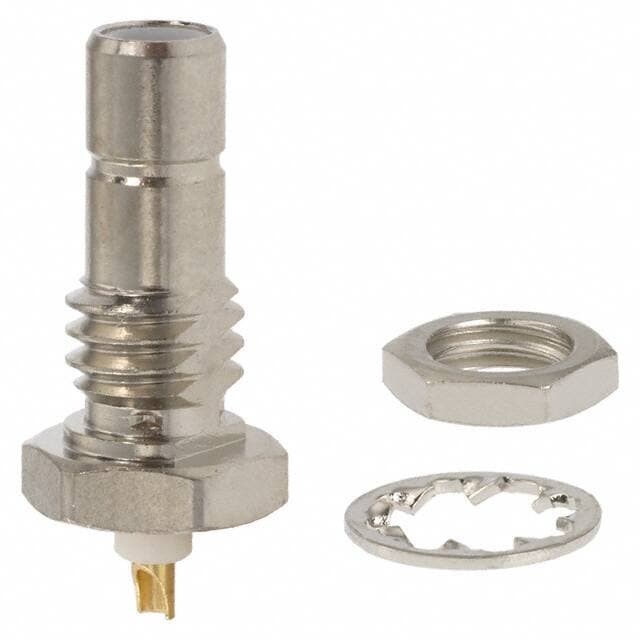

TE Connectivity 228215-1

Manufacturer No:

228215-1

Manufacturer:

TE Connectivity

Package:

Description:

Receptacle, Male Pin Snap-On 50Ohm Bulk SMB Solder Cup 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

228215-1 information

TE Connectivity 228215-1 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 228215-1.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 3 days ago)

Factory Lead Time
12 Weeks

Contact Material
Copper

Mount
Bulkhead, Panel

Mounting Type
Panel Mount

Mounting Feature
Bulkhead - Front Side Nut

Insulation Material
Polytetrafluoroethylene

Dielectric Material
Polytetrafluoroethylene (PTFE)

Body Material
Brass

Center Contact Plating
Gold

Center Contact Material
Beryllium Copper

Operating Temperature
-65°C~165°C

Packaging
Bulk

Published
1997

Feature
Extended Insulation

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Connector Type
Receptacle, Male Pin

Number of Positions
1

Gender
Female

Voltage - Rated
335V

Additional Feature
INSERTION LOSS MAX. AT 3 GHZ

Fastening Type
Snap-On

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Option
GENERAL PURPOSE

Total Number of Contacts
1

Orientation
Straight

Depth
6.35mm

Frequency
4GHz

Reliability
COMMERCIAL

Housing Color
Silver

Polarity
Normal, Standard

Contact Style
COAX

Contact Resistance
8mOhm

Insulation Resistance
1GOhm

ELV
Compliant

Impedance
50Ohm

Connector Style
SMB

Number of Ports
1

Sealable
No

Mating Cycles
500

Contact Termination
Solder Cup

Includes
3 pcs - 1 Connector, 1 Lockwasher, 1 Nut

Insertion Loss
0.3dB

Download datasheets and manufacturer documentation for TE Connectivity 228215-1.

Datasheets:

teconnectivityampconnectors-2282151-datasheets-1725.pdf

228215-1 Overview

A Receptacle, Male Pin package is included with it.Panel Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.Furthermore, there are other features such as INSERTION LOSS MAX. AT 3 GHZ, to name a few.With 1 ports, it is capable of managing a wide range of tasks.In many ways, Extended Insulation makes it more powerful.By Bulkhead, Panel, the part is mounted.Operating temperature is set to -65°C~165°C.An effective performance can be achieved at a frequency of 4GHz.

228215-1 Features

228215-1 Applications

There are a lot of TE Connectivity AMP Connectors
228215-1 Coaxial Connectors applications.

Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
