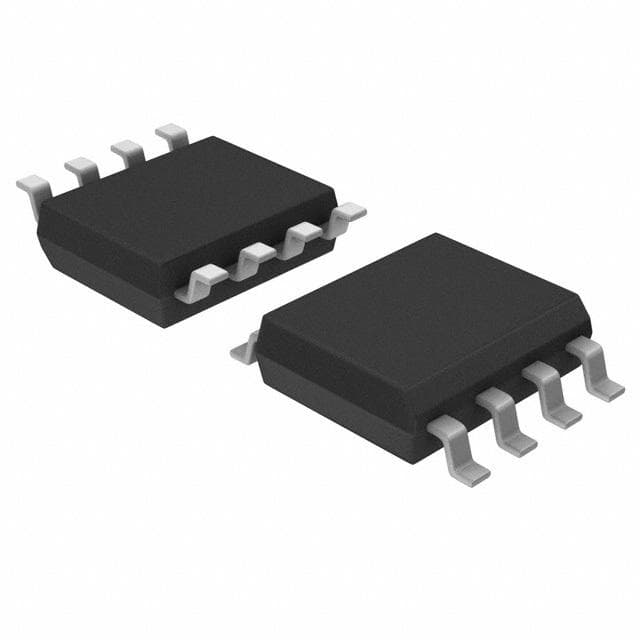

Renesas 2305A-1HDCG8

Manufacturer No:

2305A-1HDCG8

Manufacturer:

Renesas

Package:

SOIC

Description:

3.3V 133MHz Clock Generators 8 Pins SOIC 8 Terminals Tape and Reel

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2305A-1HDCG8 information

Renesas 2305A-1HDCG8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 2305A-1HDCG8.

Type
Parameter

Factory Lead Time
8 Weeks

Contact Plating
Tin

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
8

Packaging
Tape and Reel

Published
2009

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Clock Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
8

Qualification Status
Not Qualified

Temperature Grade
COMMERCIAL

Number of Circuits
1

Max Supply Voltage
3.6V

Min Supply Voltage
3V

Nominal Supply Current
32mA

Frequency (Max)
133MHz

Family
2305

Output Characteristics
3-STATE

Input
LVTTL

Same Edge Skew-Max (tskwd)
0.25 ns

Number of True Outputs
4

Length
4.9mm

Width
3.9mm

Thickness
1.5mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 2305A-1HDCG8.

Datasheets:

integrateddevicetechnology-2305a1hdcg8-datasheets-3429.pdf

2305A-1HDCG8 Overview

In order to package it as a clock IC, the Tape and Reel package is used. A Clock PLL is included with the SOIC package. Frequency generator can maintain a maximum temperature of 260 under reflowing conditions. As a result of this, we can find 8 terminations. Clock generator ics require a voltage of 3.3V. As the Clock PLL's input, LVTTL is designed to be used in order to generate the clock signal. It is possible to access the full performance of the electrical part by implementing 1 circuits. It provides a maximum frequency of 133MHz. It is a 8-bit IC that is designed for microprocessors specifically. The frequency synthesizer has 8 pins that are available. A frequency generator with 0°C operations has an impressive low-temperature performance. At a temperature of 70°C, the clock generator ic can operate with attenuated performance. In terms of the supply voltage, analog clock generator can handle 3.3V volts. Fundamentally, this is a kind of Clock Drivers clock PLL. As a result of this digital clock generator, there is a low timing skew at 0.25 ns max. Analog clock generator is configured with 4 pins that enable the high true output. By searching for the 2305 family, it is possible to find similar electrical components. A voltage exceeding 3.6V is not acceptable for supply to this frequency generator. This clock generator ic requires a voltage supply no lower than 3V.

2305A-1HDCG8 Features

Available in the SOIC
Supply voltage of 3.3V
Operating supply voltage of 3.3V
4 true outputs

2305A-1HDCG8 Applications

There are a lot of Integrated Device Technology (IDT)
2305A-1HDCG8 Clock Generators applications.

10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
Fiber Channel
PCI express cards
Infotainment systems
Medical equipment
Multi-function printers
Media broadcast servers
Test equipment
