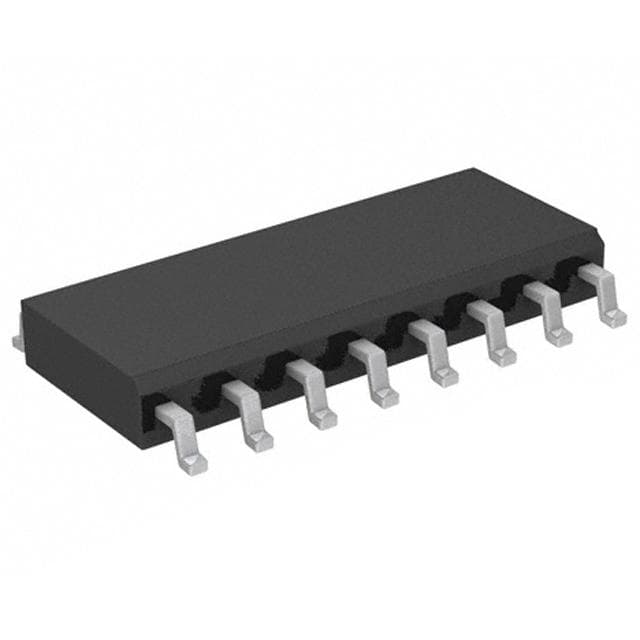

Renesas 2308-5HDCG8

Manufacturer No:

2308-5HDCG8

Manufacturer:

Renesas

Package:

SOIC

Description:

3.3V 133.3MHz Clock Generators 16 Pins SOIC 16 Terminals Tape and Reel

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2308-5HDCG8 information

Renesas 2308-5HDCG8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 2308-5HDCG8.

Type
Parameter

Factory Lead Time
7 Weeks

Contact Plating
Tin

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
16

Packaging
Tape and Reel

Published
2012

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

ECCN Code
EAR99

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Clock Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
16

Qualification Status
Not Qualified

Temperature Grade
COMMERCIAL

Number of Circuits
1

Max Supply Voltage
3.6V

Min Supply Voltage
3V

Nominal Supply Current
70mA

Frequency (Max)
133.3MHz

Family
2308

Output Characteristics
3-STATE

Input
LVTTL

Logic IC Type
PLL BASED CLOCK DRIVER

Same Edge Skew-Max (tskwd)
0.2 ns

Number of True Outputs
8

Length
9.9mm

Width
3.9mm

Thickness
1.5mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 2308-5HDCG8.

Datasheets:

integrateddevicetechnology-23085hdcg8-datasheets-6205.pdf

integrateddevicetechnology-23085hdcg8-datasheets-1487.pdf

2308-5HDCG8 Overview

The Tape and Reel method is used for packaging clock ICs. As part of the SOIC package, this clock generator is embedded. This clock generator ic can sustain 260 degrees of temperature during reflowing. There are 16 terminations found in this file. To operate this time clock generator, 3.3V voltage should be applied. In this clock generator, LVTTL is used as the input to the clock. For a full understanding of the electronic part's performance, 1 circuits are implemented. An up to 133.3MHz frequency is provided by this clock-based RF synthesizer. It is a 16-bit clock PLL designed specifically for microprocessors. There are 16 pins on the frequency generators that are available for use. There are 0°C operations that can be performed on this clock generator, which has impressive low-temperature performance. At 70°C, this RF synthesizer remains functional despite reduced performance. Supply voltage 3.3V is what clock generator can handle. In general, this clock PLL is considered a Clock Drivers device. Low timing skew is offered by this RF synthesizer at maximum 0.2 ns. The digital clock generator has 8 high-enable output pins. By searching for parts that belong to the 2308 family, you can find electronic parts that are similar. There is no way that a voltage higher than 3.6V can be supplied to this clock generator. Powered by 3V, this clock generator has the lowest supply voltage limit. PLL BASED CLOCK DRIVER logic circuits are primarily constructed using this time clock generator.

2308-5HDCG8 Features

Available in the SOIC
Supply voltage of 3.3V
Operating supply voltage of 3.3V
8 true outputs

2308-5HDCG8 Applications

There are a lot of Integrated Device Technology (IDT)
2308-5HDCG8 Clock Generators applications.

Wireless base station for LTE, LTE-advanced
Picocells, femtocells and small cells
Sampling clocks for ADC and DAC
1 Gigabit Ethernet
10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
Fiber Channel
PCI express cards
Infotainment systems
