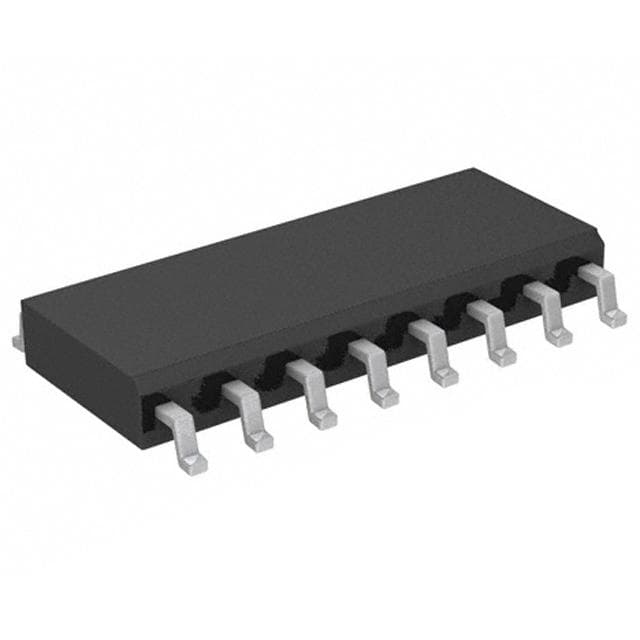

Renesas 23S08-1DCGI8

Manufacturer No:

23S08-1DCGI8

Manufacturer:

Renesas

Package:

SOIC

Description:

3.3V 133.3MHz Clock Generators 16 Pins SOIC 16 Terminals Tape and Reel

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

23S08-1DCGI8 information

Renesas 23S08-1DCGI8 technical specifications, attributes, parameters and parts with similar specifications to Renesas 23S08-1DCGI8.

Type
Parameter

Factory Lead Time
7 Weeks

Contact Plating
Tin

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
16

Packaging
Tape and Reel

Published
2009

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

ECCN Code
EAR99

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Clock Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
16

Qualification Status
Not Qualified

Temperature Grade
INDUSTRIAL

Number of Circuits
1

Max Supply Voltage
3.6V

Min Supply Voltage
3V

Nominal Supply Current
45mA

Frequency (Max)
133.3MHz

Family
23S

Output Characteristics
3-STATE

Input
LVTTL

Logic IC Type
PLL BASED CLOCK DRIVER

Max I(ol)
0.008 A

Same Edge Skew-Max (tskwd)
0.2 ns

Number of True Outputs
8

Length
9.9mm

Width
3.9mm

Thickness
1.5mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas 23S08-1DCGI8.

Datasheets:

integrateddevicetechnology-23s081dcgi8-datasheets-6638.pdf

23S08-1DCGI8 Overview

Tape and Reel-method packaging is used for clock ICs. The SOIC package contains this clock generator. This clock generator ic can sustain a maximum temperature of NOT SPECIFIED during reflowing. It contains 16 terminations that can be found in frequency synthesizer. This electronic frequency generator requires a voltage of 3.3V. The input of this clock generator is designed to be LVTTL. To access the full performance of the electronic component, 1 circuits are implemented. There is a maximum frequency of 133.3MHz Max with this clock-based frequency generator. The clock-generating IC is a 16-bit device designed specifically for microprocessors. It is possible to connect to the frequency generators via 16 pins. Despite its low-temperature operation, this clock generator ic is capable of -40°C operations. Despite its attenuated performance, this frequency synthesizer can last at 85°C. There is a maximum supply voltage of 3.3V that clock generator can handle. This clock generator can be classified as a kind of Clock Drivers in general. At 0.2 ns Max, this clock generator offers low timing skew. 8 high true output enable pins are available on this clock generator. When searching for parts of the 23S family, similar frequency generators will be found. It is unacceptable to supply this clock PLL with a voltage higher than 3.6V. There is a maximum supply voltage of 3V for this RF synthesizer. Logic circuits based on PLL BASED CLOCK DRIVER logic use this electronic frequency generator.

23S08-1DCGI8 Features

Available in the SOIC
Supply voltage of 3.3V
Operating supply voltage of 3.3V
8 true outputs

23S08-1DCGI8 Applications

There are a lot of Integrated Device Technology (IDT)
23S08-1DCGI8 Clock Generators applications.

Automatic test equipment
Wide area power system
Digital circuits
Wireless base station for LTE, LTE-advanced
Picocells, femtocells and small cells
Sampling clocks for ADC and DAC
1 Gigabit Ethernet
10 Gigabit Ethernet
FPGA and processor clocks
Line cards used in telephone exchange
