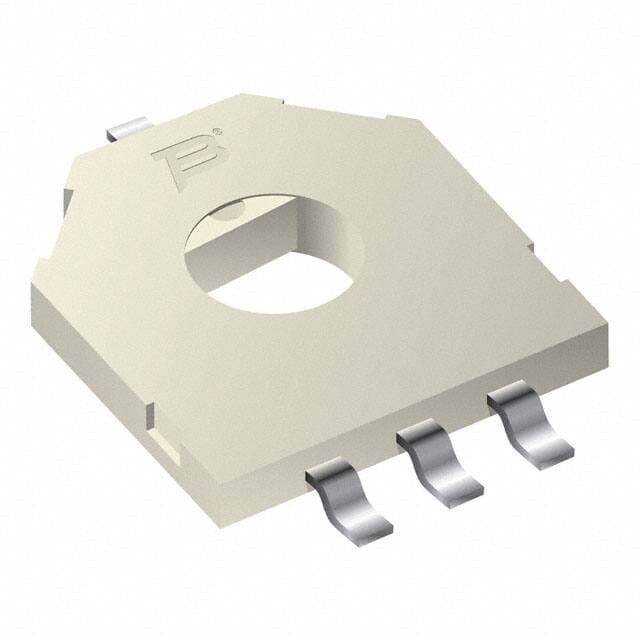

BOURNS 3382G-1-503G

Manufacturer No:

3382G-1-503G

Manufacturer:

BOURNS

Package:

4-SMD, Gull Wing

Description:

For Measuring Rotary Position SMD (SMT) Tab Hole for Shaft -40°C~120°C Resistive ±2% 0° ~ 330°, Continuous Clockwise Increase Resistive 4-SMD, Gull Wing

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

3382G-1-503G information

BOURNS 3382G-1-503G technical specifications, attributes, parameters and parts with similar specifications to BOURNS 3382G-1-503G.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
4-SMD, Gull Wing

Number of Pins
3

Operating Temperature
-40°C~120°C

Packaging
Tape & Reel (TR)

Published
2009

Tolerance
30%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMD/SMT

Resistance
50kOhms

Max Operating Temperature
120°C

Min Operating Temperature
-40°C

Power Rating
50mW

Technology
Resistive

Base Part Number
3382G

Output
Resistive

Termination Style
SMD (SMT) Tab

Actuator Type
Hole for Shaft

Output Type
Analog

Operating Supply Voltage
16V

Linearity
±2%

Resistance Tolerance
±30%

Max Supply Voltage (DC)
16V

For Measuring
Rotary Position

Output Signal
Clockwise Increase

Rotation Angle - Electrical, Mechanical
0° ~ 330°, Continuous

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for BOURNS 3382G-1-503G.

3382G-1-503G Overview

To protect the linear position measuring sensors from damage, they are packaged in 4-SMD, Gull Wing packages. The Tape & Reel (TR) package contains this electronic component. For the angle position measuring sensors to function normally, the minimum operating temperature can be set to -40°C. Angle position measuring sensors, however, cannot operate above 120°C. Linear position sensors can oppose current flow in the 50kOhms direction. There are 3 pins on the linear position measuring sensor. The supply voltage applied by the linear position measuring sensor should be 16V when it operates. In a DC circuit, the linear position measuring sensor cannot have a higher supply voltage than 16V.

3382G-1-503G Features

Operating Temperature: -40°C~120°C
Mount: Surface Mount
Package / Case: 4-SMD, Gull Wing
Mounting Type: Surface Mount
3 Pins
Resistance Tolerance: ±30%

3382G-1-503G Applications

There are a lot of Bourns Inc.
3382G-1-503G Angle & Linear Position Measuring Sensors applications.

Control elements
Electric meters (anti tampering)
Volume control on audio equipment
Motion controllers
Dishwasher control systems
Automotive temperature range
Robotic joint position detection
Industrial motor position control
Medical robots and fitness equipment
Absolute Rotary Position Sensor
