Manufacturer No:

3382H-1-502

Manufacturer:

BOURNS

Package:

Module, PC Pins

Description:

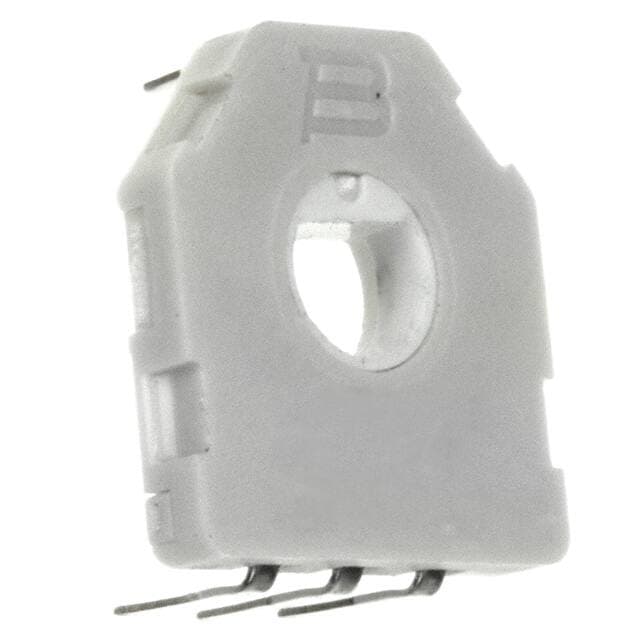

For Measuring Rotary Position PC Pin Hole for Shaft -40°C~120°C Resistive ±2% 0° ~ 330°, Continuous Clockwise Increase Resistive Module, PC Pins

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

3382H-1-502 information

BOURNS 3382H-1-502 technical specifications, attributes, parameters and parts with similar specifications to BOURNS 3382H-1-502.

  • Type
  • Parameter
  • Factory Lead Time
  • 7 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Module, PC Pins
  • Number of Pins
  • 3
  • Operating Temperature
  • -40°C~120°C
  • Packaging
  • Tube
  • Published
  • 2012
  • Tolerance
  • 30%
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • PC Pin
  • Resistance
  • 5kOhms
  • Max Operating Temperature
  • 120°C
  • Min Operating Temperature
  • -40°C
  • Technology
  • Resistive
  • Base Part Number
  • 3382H
  • Output
  • Resistive
  • Termination Style
  • PC Pin
  • Actuator Type
  • Hole for Shaft
  • Output Type
  • Analog
  • Linearity
  • ±2%
  • Sensing Method
  • Resistive
  • Resistance Tolerance
  • ±30%
  • For Measuring
  • Rotary Position
  • Output Signal
  • Clockwise Increase
  • Rotation Angle - Electrical, Mechanical
  • 0° ~ 330°, Continuous
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for BOURNS 3382H-1-502.

Datasheets:

Environmental Information:

PCN Design/Specification:

ConflictMineralStatement:

3382H-1-502 Overview


As a preventative measure, linear position sensors are packaged in Module, PC Pins packages. In the Tube package, this electronic component is contained. In order to make sure that the angle position sensors function properly, the minimum operating temperature can be set to -40°C. It is important to note, however, that angle position measuring sensors cannot operate above 120°C. The linear position measurement sensors can resist the passage of 5kOhms currents. 3 pins make up the linear position measuring sensor. If a DC circuit is used, the linear position sensor cannot be powered by more than 16V.

3382H-1-502 Features


Operating Temperature: -40°C~120°C
Mount: Through Hole
Package / Case: Module, PC Pins
Mounting Type: Through Hole
3 Pins
Resistance Tolerance: ±30%


3382H-1-502 Applications


There are a lot of Bourns Inc.
3382H-1-502 Angle & Linear Position Measuring Sensors applications.


  • Robotic joint position detection
  • Industrial motor position control
  • Medical robots and fitness equipment
  • Absolute Rotary Position Sensor
  • Steering Wheel Position Sensor
  • Pedal Position Sensor
  • Motor-shaft Position Sensor
  • Throttle Position Sensor
  • Float-Level Sensor
  • Ride Height Position Sensor
