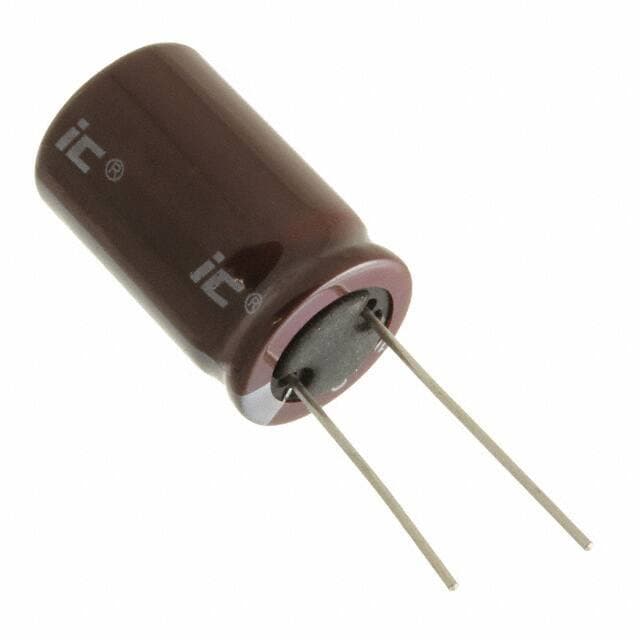

Illinois Capacitor 477CKE100M
Illinois Capacitor 477CKE100M

Illinois Capacitor 477CKE100M

Manufacturer No:

477CKE100M

Manufacturer:

Illinois Capacitor

Package:

Radial, Can

Description:

CKE 470?F Capacitor ±20% Bulk Through Hole 1.05A 0.630Dia 16.00mm -40°C~105°C Polar 7.493mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

477CKE100M information

Illinois Capacitor 477CKE100M technical specifications, attributes, parameters and parts with similar specifications to Illinois Capacitor 477CKE100M.

  • Type
  • Parameter
  • Factory Lead Time
  • 22 Weeks
  • Mount
  • PCB, Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Dielectric Material
  • ALUMINUM (WET)
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • CKE
  • Published
  • 2005
  • Size / Dimension
  • 0.630Dia 16.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • Capacitance
  • 470?F
  • Voltage - Rated DC
  • 100V
  • Lead Pitch
  • 7.493mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • ESR (Equivalent Series Resistance)
  • 282mOhm @ 120Hz
  • Lead Spacing
  • 0.295 7.50mm
  • Lifetime @ Temp
  • 2000 Hrs @ 105°C
  • Leakage Current
  • 1.41mA
  • Ripple Current
  • 1.05A
  • Polarization
  • Polar
  • Life (Hours)
  • 2000 hours
  • Ripple Current @ Low Frequency
  • 1.05A @ 120Hz
  • Dissipation Factor
  • 0.08 %
  • Diameter
  • 500?m
  • Height Seated (Max)
  • 1.043 26.50mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Illinois Capacitor 477CKE100M.

Datasheets:

Environmental Information:

477CKE100M Overview


For 282mOhm @ 120Hz to fully function, the equivalent series resistance has to be provided.It is 1.05A @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 1.043 26.50mm.Consequently, it operates with a dissipation factor of 0.08 % (0.08 %).Voltage - Rated DC - is 100V.It is recommended that the operating temperature be kept at -40°C~105°C to achieve high efficiency.

477CKE100M Features


the ripple current is 1.05A @ 120Hz.
a dissipation factor of 0.08 %
voltage - Rated DC of 100V
an operating temperature of -40°C~105°C


477CKE100M Applications


There are a lot of Illinois Capacitor
477CKE100M applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
