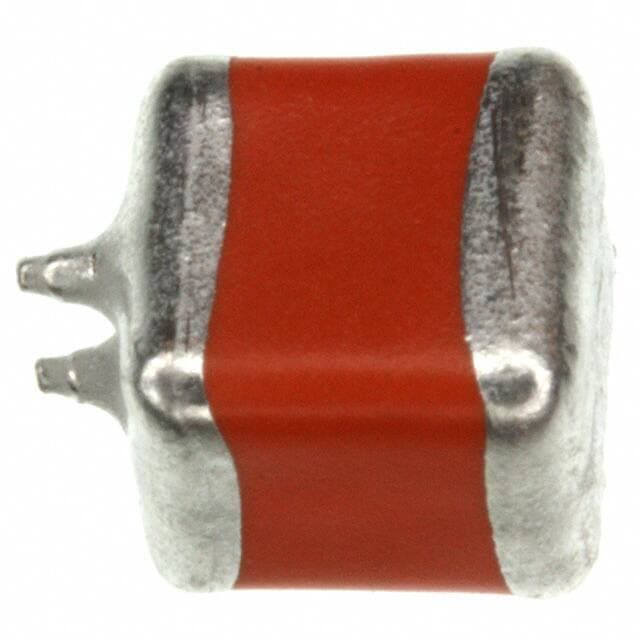

VISHAY 597D336X0050F2T
VISHAY 597D336X0050F2T

VISHAY 597D336X0050F2T

Manufacturer No:

597D336X0050F2T

Manufacturer:

VISHAY

Package:

2924 (7361 Metric)

Description:

33μF ±20% 150mOhm 2-Termination Polar Tantalum 17μA Tape & Reel (TR) 2924 (7361 Metric)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

597D336X0050F2T information

VISHAY 597D336X0050F2T technical specifications, attributes, parameters and parts with similar specifications to VISHAY 597D336X0050F2T.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 2924 (7361 Metric)
  • Terminal Shape
  • WRAPAROUND
  • Number of Pins
  • 2
  • Dielectric Material
  • Tantalum
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • TANTAMOUNT®, 597D
  • Published
  • 2006
  • Size / Dimension
  • 0.299Lx0.236W 7.60mmx6.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Feature
  • General Purpose
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 2A (4 Weeks)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Type
  • Conformal Coated
  • Terminal Finish
  • Matte Tin (Sn) - with Nickel (Ni) barrier
  • Capacitance
  • 33μF
  • Packing Method
  • TR, 7 INCH
  • Depth
  • 6mm
  • Case Code (Metric)
  • 7660
  • Case Code (Imperial)
  • 3024
  • ESR (Equivalent Series Resistance)
  • 150mOhm
  • Polarity
  • Polar
  • Leakage Current
  • 17μA
  • Ripple Current
  • 1.3A
  • Tan Delta
  • 0.06
  • Dissipation Factor
  • 6 %
  • Manufacturer Size Code
  • F
  • Height
  • 4.7mm
  • Height Seated (Max)
  • 0.203 5.16mm
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for VISHAY 597D336X0050F2T.

Datasheets:

RohsStatement:

597D336X0050F2T Overview


Capacitor ripple current is set to 1.3A.A series resistance (ESR), also known as internal resistance, measures the loss of useful energy in a simple electronic circuit with a resistor and an ideal (perfect) capacitor, and its resistance is 150mOhm.17μA is the leakage current of this capacitor.In this capacitor's case, the dissipation factor 6 % represents the power loss caused by AC applied through it.The tan delta of the insulating oil is 0.06 based on its electrical dielectric test.

597D336X0050F2T Features


1.3A is the ripple current of the capacitor
a leakage current of 17μA in this capacitor
the dissipation factor is 6 %
its tan delta is 0.06


597D336X0050F2T Applications


There are a lot of Vishay Sprague
597D336X0050F2T applications of tantalum capacitors.


  • Computer
  • General purpose
  • General low power DC/DC and LDO
  • Automotive ECU
  • ABS
  • Airbag systems
  • Avionics,
  • Industrial control units
  • Military / aerospace
  • General purpose
