DIODES 74LVC1G86FW5-7

Manufacturer No:

74LVC1G86FW5-7

Manufacturer:

DIODES

Package:

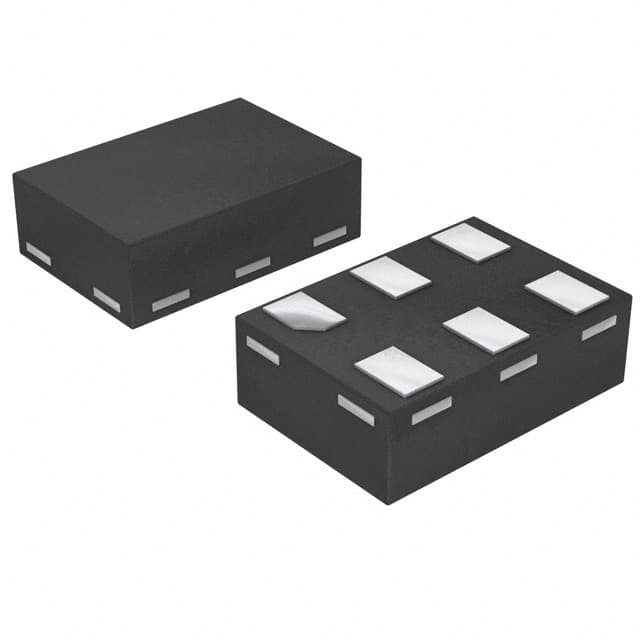

1 X 1 MM, 0.50 MM HEIGHT, 0.35 MM PITCH, GREEN, DFN-6

Description:

XOR Gate, LVC/LCX/Z Series, 1-Func, 2-Input, CMOS, PDSO6, 1 X 1 MM, 0.50 MM HEIGHT, 0.35 MM PITCH, GREEN, DFN-6

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

74LVC1G86FW5-7 information

DIODES 74LVC1G86FW5-7 technical specifications, attributes, parameters and parts with similar specifications to DIODES 74LVC1G86FW5-7.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
DIODES INC

Package Description
1 X 1 MM, 0.50 MM HEIGHT, 0.35 MM PITCH, GREEN, DFN-6

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Factory Lead Time
8 Weeks

Samacsys Manufacturer
Diodes Incorporated

Family
LVC/LCX/Z

JESD-30 Code
S-PDSO-N6

JESD-609 Code
e4

Length
1 mm

Logic IC Type
XOR GATE

Moisture Sensitivity Level
1

Number of Functions
1

Number of Inputs
2

Number of Terminals
6

Operating Temperature-Max
125 °C

Operating Temperature-Min
-40 °C

Package Body Material
PLASTIC/EPOXY

Package Code
VSON

Package Shape
SQUARE

Package Style
SMALL OUTLINE, VERY THIN PROFILE

Propagation Delay (tpd)
13 ns

Seated Height-Max
0.5 mm

Supply Voltage-Max (Vsup)
5.5 V

Supply Voltage-Min (Vsup)
1.65 V

Supply Voltage-Nom (Vsup)
3.3 V

Surface Mount
YES

Technology
CMOS

Temperature Grade
AUTOMOTIVE

Terminal Finish
NICKEL PALLADIUM GOLD

Terminal Form
NO LEAD

Terminal Pitch
0.35 mm

Terminal Position
DUAL

Time@Peak Reflow Temperature-Max (s)
30

Width
1 mm

Download datasheets and manufacturer documentation for DIODES 74LVC1G86FW5-7.

Environmental Information:

diodesincorporated-desd5v0s1ba7-environmentalinformation-9032.pdf

74LVC1G86FW5-7 Overview

Packed in 6-XFDFN, the part is convenient for shipping overseas. Advanced packaging method Tape & Reel (TR) is used to provide high reliability. It works based on the XOR (Exclusive OR) logic principle. To ensure the part's full function, a voltage of 1.65V~5.5V is needed. Extended operating temperature around -40°C~125°C TA. The part is mounted in Surface Mount. The high and low state of output current is 32mA 32mA. It comes from the 74LVC series. There are 6 terminations totally. The part has 1 functions that significantly boost the user experience. It represents the LVC/LCX/Z product family. If you are looking for device variants, try search with 74LVC1G86. Surface Mount mounted, this logic device is widely used in many applications. Please refer to the datasheets for 6 pins functions. The part supports 2 inputs. In the quiescent state, the part has 200μA current flowing through it. This device is composed of 1 circuits. The supply voltage should not exceed 5.5V.
