Manufacturer No:

957234-5002-AR

Manufacturer:

3M

Package:

Description:

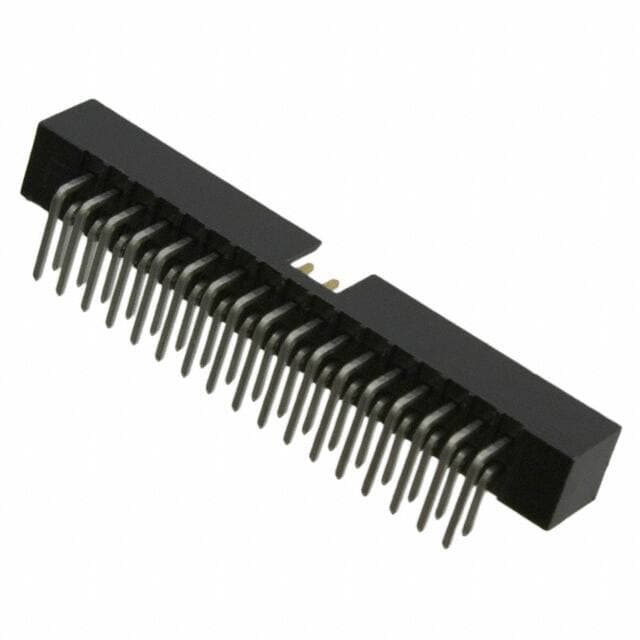

957 Series 2-Row Header Solder Copper Alloy Tray Through Hole, Right Angle Gold Thermoplastic 34-Position Board to Board 0.217 5.51mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

957234-5002-AR information

3M 957234-5002-AR technical specifications, attributes, parameters and parts with similar specifications to 3M 957234-5002-AR.

  • Type
  • Parameter
  • Factory Lead Time
  • 3 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Gold
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole, Right Angle
  • Contact Shape
  • Square
  • Insulation Material
  • Thermoplastic
  • Housing Material
  • Thermoplastic
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tray
  • Series
  • 957
  • Published
  • 2009
  • Feature
  • Keying Slot
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Header
  • Number of Positions
  • 34
  • Max Operating Temperature
  • 105°C
  • Min Operating Temperature
  • -40°C
  • Color
  • Black
  • Number of Rows
  • 2
  • Gender
  • Male
  • Fastening Type
  • Push-Pull
  • Contact Type
  • Male Pin
  • Current Rating (Amps)
  • 1A
  • Pitch
  • 2.0066mm
  • Orientation
  • Right Angle
  • Depth
  • 8.5mm
  • Insulation Height
  • 0.217 5.51mm
  • Style
  • Board to Board
  • Number of Positions Loaded
  • All
  • Pitch - Mating
  • 0.079 2.00mm
  • Insulation Color
  • Black
  • Row Spacing - Mating
  • 0.079 (2.00mm)
  • Contact Length - Post
  • 0.118 3.00mm
  • Shrouding
  • Shrouded - 4 Wall
  • Contact Finish - Post
  • Tin
  • Housing Color
  • Black
  • Max Current Rating
  • 1A
  • Length
  • 41.2mm
  • Contact Finish Thickness - Mating
  • Flash
  • Contact Finish Thickness - Post
  • 39.4?in 1.00?m
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for 3M 957234-5002-AR.

ConflictMineralStatement:

Datasheets:

957234-5002-AR Overview


This product is packaged in a Header carton.Through Hole, Right Angle is the mounting type for the device.The product is packaged in a Tray case.It's part of the 957 Series.Ideally, it should be used when the temperature is below 105°C.Temperature must be -40°C to operate this device.Many aspects of its Keying Slot feature increase its effectiveness.Mounting of the part is based on Through Hole.It runs at -40°C~105°C Operating Temperature.
