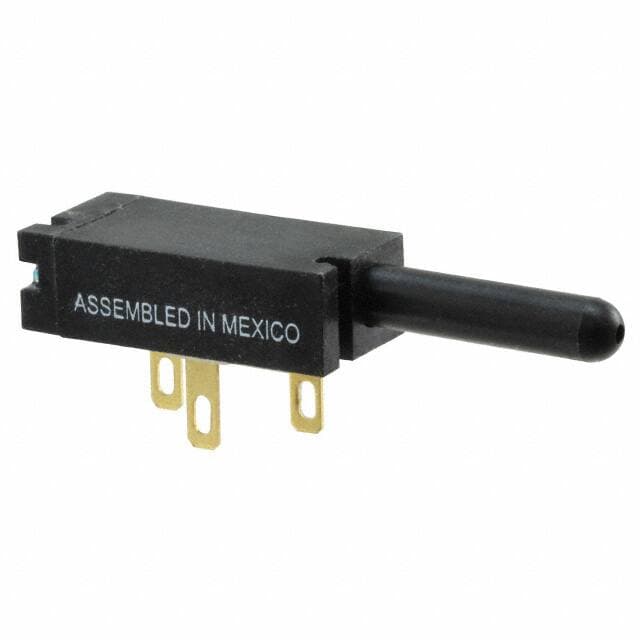

Sensata 9605R1.7KL2.0

Manufacturer No:

9605R1.7KL2.0

Manufacturer:

Sensata

Package:

Box with Solder Lugs

Description:

900 Series For Measuring Linear Position Solder Lug Shaft -40°C~135°C ±2% Box with Solder Lugs

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

9605R1.7KL2.0 information

Sensata 9605R1.7KL2.0 technical specifications, attributes, parameters and parts with similar specifications to Sensata 9605R1.7KL2.0.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
PCB

Mounting Type
Chassis Mount

Package / Case
Box with Solder Lugs

Number of Pins
3

Housing Material
Aluminium

Operating Temperature
-40°C~135°C

Packaging
Bulk

Series
900

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Connector

Resistance
1.7kOhm

Power Rating
250mW

Technology
Resistive

Termination Style
Solder Lug

Body Breadth
7.9 mm

Actuator Type
Shaft

Operating Supply Voltage
60V

Linearity
±2%

For Measuring
Linear Position

Measurement Range-Max
10 mm

Linear Range
0 ~ 12.70mm (0 ~ 0.50)

Length
26.9mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Sensata 9605R1.7KL2.0.

Datasheets:

sensatabeisensors-9605r17kl20-datasheets-0953.pdf

sensatabeisensors-9605r17kl20-datasheets-2299.pdf

sensatabeisensors-9605r17kl20-datasheets-2300.pdf

sensatabeisensors-9605r17kl20-datasheets-2301.pdf

sensatabeisensors-9605r17kl20-datasheets-2302.pdf

9605R1.7KL2.0 Overview

In order to prevent damage to the linear position measurement sensors, they are packaged in Box with Solder Lugs packages. Electronic components are packaged in Bulk. A linear position sensor is capable of opposing the passage of currents of 1.7kOhm. A linear position sensor has a pin count of 3. The supply voltage applied by the linear position measuring sensor should be 60V when it operates.

9605R1.7KL2.0 Features

Operating Temperature: -40°C~135°C
900 Series
Mount: PCB
Package / Case: Box with Solder Lugs
Mounting Type: Chassis Mount
3 Pins
Linear Range: 0 ~ 12.70mm (0 ~ 0.50)

9605R1.7KL2.0 Applications

There are a lot of Sensata-BEI Sensors
9605R1.7KL2.0 Angle & Linear Position Measuring Sensors applications.

Motion controllers
Dishwasher control systems
Automotive temperature range
Robotic joint position detection
Industrial motor position control
Medical robots and fitness equipment
Absolute Rotary Position Sensor
Steering Wheel Position Sensor
Pedal Position Sensor
Motor-shaft Position Sensor
