Assmann WSW Components A-2004-2-4-LP/FS-N-R

Manufacturer No:

A-2004-2-4-LP/FS-N-R

Manufacturer:

Assmann WSW Components

Package:

Description:

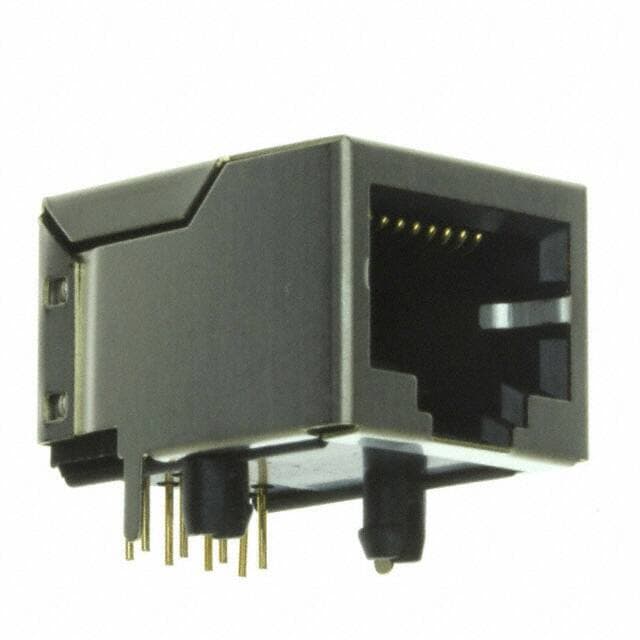

Jack Tray Shielded 8p8c (RJ45, Ethernet) 1 Port 90° Angle (Right) Solder Through Hole -40°C~85°C

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

A-2004-2-4-LP/FS-N-R information

Assmann WSW Components A-2004-2-4-LP/FS-N-R technical specifications, attributes, parameters and parts with similar specifications to Assmann WSW Components A-2004-2-4-LP/FS-N-R.

Type
Parameter

Factory Lead Time
23 Weeks

Contact Material
Phosphor Bronze

Mount
Through Hole

Mounting Type
Through Hole

Shell Material
BRASS

Housing Material
Polyester

Operating Temperature
-40°C~85°C

Packaging
Tray

Published
2011

Feature
Board Lock

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Jack

Additional Feature
ROHS COMPLIANT

HTS Code
8536.69.40.30

Subcategory
Telecom and Datacom Connectors

Total Number of Contacts
8

Orientation
90° Angle (Right)

Shielding
Shielded

Terminal Pitch
2.54mm

Shell Finish
NICKEL

Reference Standard
UL

Reliability
COMMERCIAL

Body Length or Diameter
0.626 inch

PCB Contact Pattern
STAGGERED

Body Breadth
0.535 inch

Contact Gender
MALE

Body Depth
0.835 inch

Contact Style
TELCOM, MODULAR

Contact Resistance
20mOhm

Insulation Resistance
500000000Ohm

Body/Shell Style
RECEPTACLE

Number of Ports
1

Durability
500 Cycles

Insulator Color
BLACK

Number of Positions/Contacts
8p8c (RJ45, Ethernet)

LED Color
Does Not Contain LED

Tab Direction
Down

Contact Finish Thickness
6.00?in 0.152?m

Plating Thickness
6?in

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Assmann WSW Components A-2004-2-4-LP/FS-N-R.

A-2004-2-4-LP/FS-N-R Overview

A Jack package is included with it.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.Furthermore, there are other features such as ROHS COMPLIANT, to name a few.With 1 ports, it is capable of managing a wide range of tasks.In many ways, Board Lock makes it more powerful.By Through Hole, the part is mounted.Operating temperature is set to -40°C~85°C.

A-2004-2-4-LP/FS-N-R Features

A-2004-2-4-LP/FS-N-R Applications

There are a lot of Assmann WSW Components
A-2004-2-4-LP/FS-N-R Modular Connectors applications.

Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
