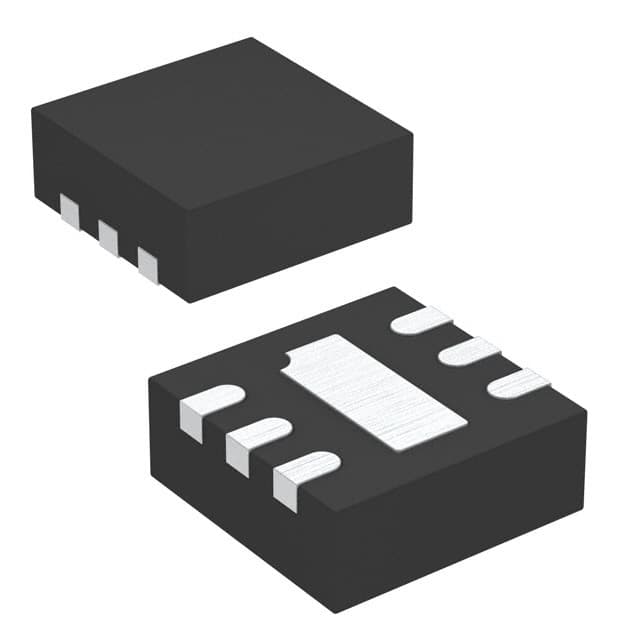

SKYWORKS AAT4616AIPU-T1

Manufacturer No:

AAT4616AIPU-T1

Manufacturer:

SKYWORKS

Package:

6-VDFN Exposed Pad

Description:

5V P-Channel 0.635mm PMIC 5V 6-VDFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AAT4616AIPU-T1 information

SKYWORKS AAT4616AIPU-T1 technical specifications, attributes, parameters and parts with similar specifications to SKYWORKS AAT4616AIPU-T1.

Type
Parameter

Factory Lead Time
10 Weeks

Mounting Type
Surface Mount

Package / Case
6-VDFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Published
2006

Feature
Status Flag

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

Resistance
230mOhm

Subcategory
Peripheral Drivers

Max Power Dissipation
1.18W

Terminal Position
DUAL

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Supply Voltage
5V

Terminal Pitch
0.635mm

Current Rating
2A

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
R-PDSO-N6

Number of Outputs
1

Qualification Status
Not Qualified

Max Output Current
2A

Operating Supply Voltage
5.5V

Power Supplies
5V

Interface
On/Off

Output Configuration
High Side

Output Current
2A

Voltage - Supply (Vcc/Vdd)
Not Required

Max Supply Current
10?A

Input Type
Non-Inverting

Turn On Delay Time
7 ?s

Switch Type
General Purpose

Turn-Off Delay Time
10 ?s

Ratio - Input:Output
1:1

Voltage - Load
2.4V~5.5V

Driver Number of Bits
1

Fault Protection
Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO

Rds On (Typ)
130m ?

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for SKYWORKS AAT4616AIPU-T1.

Datasheets:

skyworkssolutionsinc-aat4616aipu1t1-datasheets-7742.pdf

PCN Obsolescence/ EOL:

skyworkssolutionsinc-sky8129414001-pcnobsolescenceeol-6745.pdf

AAT4616AIPU-T1 Overview

It's packaged in the way of a Tape & Reel (TR).It's included in the 6-VDFN Exposed Pad package.The mounting type of the LED driver is Surface Mount.It owns General Purpose switch type.The temperature should be set to -40°C~85°C TA to ensure reliable functioning.By default, it is set to output 1.It uses a supply voltage of Not Required to operate.It has a maximum output voltage of P-Channel volts.The lighting driver has Status Flag features.There are 6 terminations in it.To meet the operation criteria, the maximum output current drops to 2A.With a supply voltage of 5V, high efficiency is possible.The LED driver has 230mOhm resistance.The output current is set to 2A in this case.This LED driver is self-contained in an econtainer with a capacity of Peripheral Drivers.The power supply of the part is 5V.The supply voltage should be set at 5.5V for best efficiency.The maximum current required for its operation is 10?A.

AAT4616AIPU-T1 Features

Supplied from 5V
Resistance of 230mOhm

AAT4616AIPU-T1 Applications

There are a lot of Skyworks Solutions Inc.
AAT4616AIPU-T1 Power Switches ICs applications.

Smartphone and PDA
Portable GPS Device
Set-top-box
USB Power Distribution
Notebook PC
Telecom and Network Systems
PC Card Hot Swap
Storage Drives
Portable/Handheld Devices
Wireless/Networking Cards
