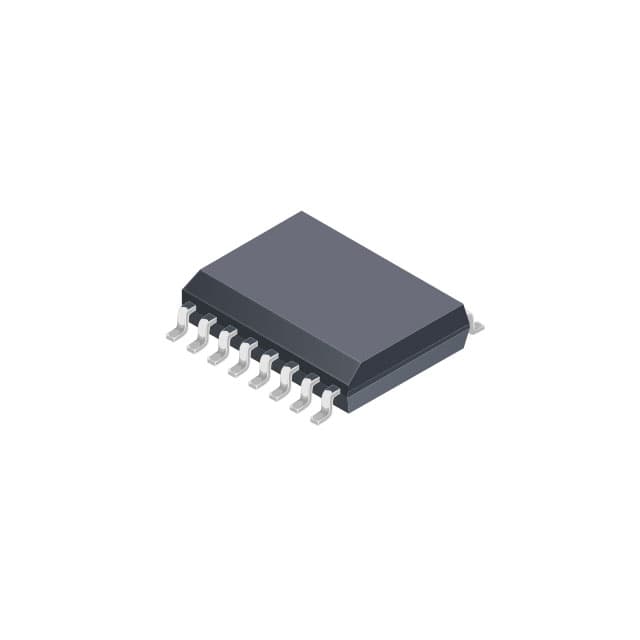

ALLEGRO ACS710KLATR-10BB-T

Manufacturer No:

ACS710KLATR-10BB-T

Manufacturer:

ALLEGRO

Package:

16-SOIC (0.295, 7.50mm Width)

Description:

Hall Effect, Open Loop Sensor 1-Channel Bidirectional -40°C~125°C TA 3V~5.5V 120kHz 10A Accuracy-±1.6% Linearity-±0.25%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ACS710KLATR-10BB-T information

ALLEGRO ACS710KLATR-10BB-T technical specifications, attributes, parameters and parts with similar specifications to ALLEGRO ACS710KLATR-10BB-T.

Type
Parameter

Factory Lead Time
21 Weeks

Mounting Type
Surface Mount

Package / Case
16-SOIC (0.295, 7.50mm Width)

Surface Mount
YES

Operating Temperature
-40°C~125°C TA

Packaging
Tape & Reel (TR)

Published
2013

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Last Time Buy

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

Terminal Finish
Matte Tin (Sn)

Technology
BICMOS

Voltage - Supply
3V~5.5V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
5V

Frequency
120kHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Output
Ratiometric, Voltage

Pin Count
16

Supply Voltage-Max (Vsup)
5.5V

Supply Voltage-Min (Vsup)
3V

Number of Channels
1

Analog IC - Other Type
ANALOG CIRCUIT

Polarization
Bidirectional

Accuracy
±1.6%

Response Time
4μs

Sensor Type
Hall Effect, Open Loop

Linearity
±0.25%

Sensitivity
85mV/A

For Measuring
AC/DC

Current - Sensing
10A

Height Seated (Max)
2.65mm

Width
7.5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ALLEGRO ACS710KLATR-10BB-T.

ACS710KLATR-10BB-T Overview

Current sensors are housed in 16-SOIC (0.295, 7.50mm Width) packages to ensure their safety. It is designed to protect the current sensors from damage by packaging them in the Tape & Reel (TR). In general, current sensors should provide no more than 14.5mA amps of current. In the current sensors, the terminations are 16. While working, these sensors can supply a voltage of 5V. It is recommended that the minimum voltage supplied by current sensors be set to 3V. It is important that current sensors do not supply voltages exceeding 5.5V. Pins 16 are present on this electronic part.

ACS710KLATR-10BB-T Features

Moisture Sensitivity Level: 3 (168 Hours)
Operating Temperature: -40°C~125°C TA
1 Channels
Mounting Type: Surface Mount
Sensor Type: Hall Effect, Open Loop
Supply Voltage: 3V~5.5V
Frequency: 120kHz
Sensing Current: 10A
16-SOIC (0.295, 7.50mm Width) Package

ACS710KLATR-10BB-T Applications

There are a lot of Allegro MicroSystems
ACS710KLATR-10BB-T Current Sensors applications.

Leakage Current Sensors
Industrial Monitoring and Control Systems
Overcurrent Detection
Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies(UPS)
