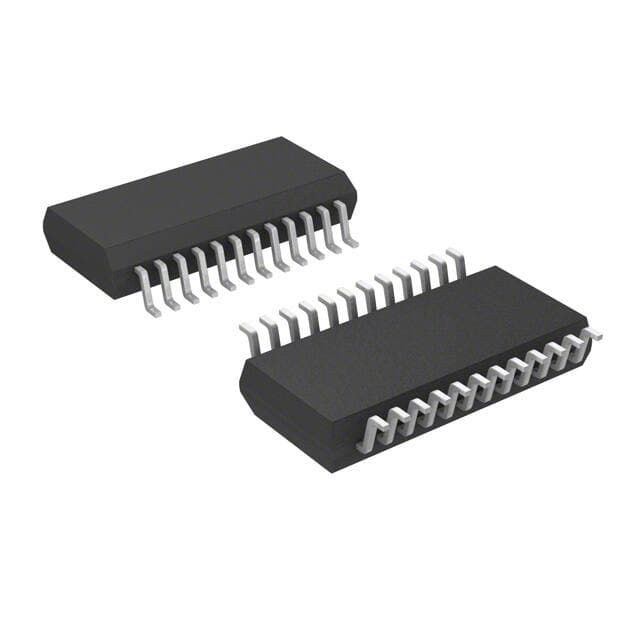

ALLEGRO ACS726LLFTR-20B-T
ALLEGRO ACS726LLFTR-20B-T

ALLEGRO ACS726LLFTR-20B-T

Manufacturer No:

ACS726LLFTR-20B-T

Manufacturer:

ALLEGRO

Package:

24-SSOP (0.154, 3.90mm Width)

Description:

Hall Effect, Open Loop Sensor 1-Channel Bidirectional -40°C~150°C 3V~3.6V DC~120kHz 20A Accuracy-±1% Linearity-±0.5%

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ACS726LLFTR-20B-T information

ALLEGRO ACS726LLFTR-20B-T technical specifications, attributes, parameters and parts with similar specifications to ALLEGRO ACS726LLFTR-20B-T.

  • Type
  • Parameter
  • Factory Lead Time
  • 18 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 24-SSOP (0.154, 3.90mm Width)
  • Number of Pins
  • 24
  • Operating Temperature
  • -40°C~150°C
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2014
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 2 (1 Year)
  • Number of Terminations
  • 24
  • Technology
  • BICMOS
  • Voltage - Supply
  • 3V~3.6V
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.635mm
  • Frequency
  • DC~120kHz
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Output
  • Ratiometric, Voltage
  • Supply Voltage-Max (Vsup)
  • 3.6V
  • Supply Voltage-Min (Vsup)
  • 3V
  • Analog IC - Other Type
  • ANALOG CIRCUIT
  • Polarization
  • Bidirectional
  • Max Supply Current
  • 40mA
  • Quiescent Current
  • 22mA
  • Accuracy
  • ±1%
  • Response Time
  • 5?s
  • Bandwidth
  • 120 kHz
  • Sensor Type
  • Hall Effect, Open Loop
  • Linearity
  • ±0.5%
  • For Measuring
  • AC/DC
  • Current - Sensing
  • 20A
  • Sensitivity (mV/A)
  • 100 mV/A
  • Length
  • 8.66mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ALLEGRO ACS726LLFTR-20B-T.

Datasheets:

ACS726LLFTR-20B-T Overview


A 24-SSOP (0.154, 3.90mm Width) package is used to protect the current sensors from damage. The devices are protected from damage by the Tape & Reel (TR) package. No more than 40mA current should be supplied by current sensors. Current sensors terminate at 24. Current sensors have 24 pins. The current sensors are capable of supplying voltages of 3.3V while they are working. It is recommended that current sensors supply a minimum voltage of 3V. However, current sensors should not supply more voltage than 3.6V.

ACS726LLFTR-20B-T Features


Moisture Sensitivity Level: 2 (1 Year)
Operating Temperature: -40°C~150°C
1 Channels
Mounting Type: Surface Mount
Sensor Type: Hall Effect, Open Loop
Supply Voltage: 3V~3.6V
Frequency: DC~120kHz
Sensing Current: 20A
24-SSOP (0.154, 3.90mm Width) Package


ACS726LLFTR-20B-T Applications


There are a lot of Allegro MicroSystems
ACS726LLFTR-20B-T Current Sensors applications.


  • Power factor correction
  • Overcurrent protection
  • DC and AC power monitoring
  • Closed-L oop DC- and AC-Current Sensor Modules
  • Leakage Current Sensors
  • Industrial Monitoring and Control Systems
  • Overcurrent Detection
  • Frequency, Voltage, and Solar Inverters
  • Electrical drives
