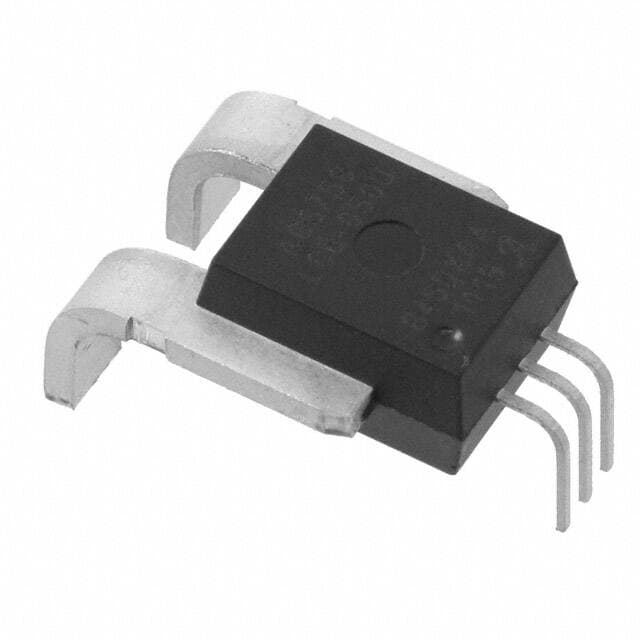

ALLEGRO ACS770ECB-200B-PFF-T

Manufacturer No:

ACS770ECB-200B-PFF-T

Manufacturer:

ALLEGRO

Package:

5-CB Formed Leads, PFF

Description:

ACS770 Series Hall Effect, Open Loop Sensor 1-Channel Bidirectional -40°C~85°C 5V DC~120kHz 200A Accuracy-±0.6% Linearity-±1%

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ACS770ECB-200B-PFF-T information

ALLEGRO ACS770ECB-200B-PFF-T technical specifications, attributes, parameters and parts with similar specifications to ALLEGRO ACS770ECB-200B-PFF-T.

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
5-CB Formed Leads, PFF

Number of Pins
5

Operating Temperature
-40°C~85°C

Packaging
Tube

Series
ACS770

Published
2010

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

Resistance
4700Ohm

Subcategory
Other Sensors/Transducers

Technology
BICMOS

Voltage - Supply
5V

Frequency
DC~120kHz

Output
Ratiometric, Voltage

Power Supplies
5V

Number of Channels
1

Termination Type
SOLDER

Polarization
Bidirectional

Max Supply Current
15mA

Accuracy
±0.6%

Response Time
4.6?s

Bandwidth
120 kHz

Sensor Type
Hall Effect, Open Loop

Linearity
±1%

Sensors/Transducers Type
MAGNETIC FIELD SENSOR,HALL EFFECT

For Measuring
AC/DC

Current - Sensing
200A

Sensitivity (mV/A)
10 mV/A

Body Height
7mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ALLEGRO ACS770ECB-200B-PFF-T.

Datasheets:

allegromicrosystems-acs770lcb050upfft-datasheets-1328.pdf

ACS770ECB-200B-PFF-T Overview

In order to ensure safety, the current sensors are packaged in 5-CB Formed Leads, PFF packages. In order to prevent damage to the devices, these current sensors are packaged in Tube. There should not be an increase in current supplied by current sensors above 15mA. Currently, the sensors have 5 terminations. A current sensor has 5 pins.

ACS770ECB-200B-PFF-T Features

Moisture Sensitivity Level: 1 (Unlimited)
Operating Temperature: -40°C~85°C
1 Channels
Mounting Type: Through Hole
Sensor Type: Hall Effect, Open Loop
Supply Voltage: 5V
Frequency: DC~120kHz
Sensing Current: 200A
5-CB Formed Leads, PFF Package

ACS770ECB-200B-PFF-T Applications

There are a lot of Allegro MicroSystems
ACS770ECB-200B-PFF-T Current Sensors applications.

Frequency, Voltage, and Solar Inverters
Electrical drives
General purpose inverters
AC variable speed drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies(UPS)
Switched Mode Power Supplies(SMPS)
Power supplies for welding applications
AC variabel speed drives and servo motor drives
