METZ CONNECT USA Inc. AJT33L8813-014

Manufacturer No:

AJT33L8813-014

Manufacturer:

METZ CONNECT USA Inc.

Package:

Description:

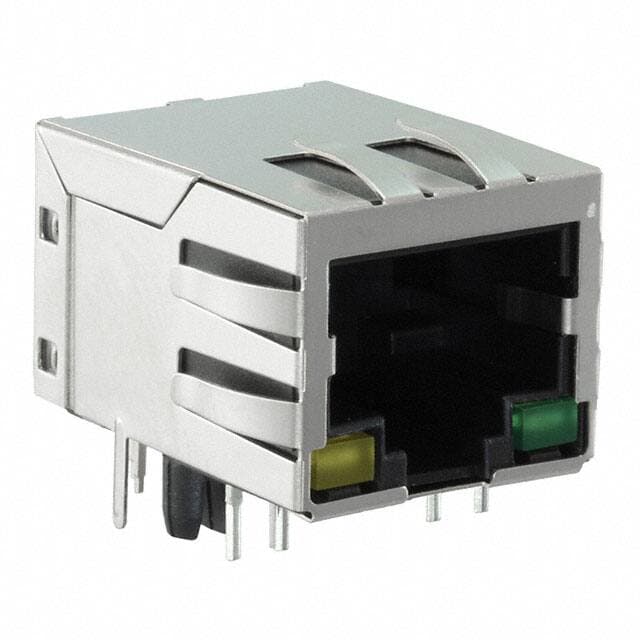

Jack Shielded, EMI Finger 8p8c (RJ45, Ethernet) 1 Port 90° Angle (Right) Solder Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AJT33L8813-014 information

METZ CONNECT USA Inc. AJT33L8813-014 technical specifications, attributes, parameters and parts with similar specifications to METZ CONNECT USA Inc. AJT33L8813-014.

Type
Parameter

Factory Lead Time
7 Weeks

Contact Material
Phosphor Bronze

Mounting Type
Through Hole

Shell Material
COPPER ALLOY

Housing Material
Polybutylene Terephthalate (PBT), Polyester, Glass Filled

Mounting Option 1
LOCKING

Mounting Option 2
MOUNTING FLANGE

Feature
Board Lock

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Solder

ECCN Code
EAR99

Connector Type
Jack

HTS Code
8536.69.40.30

Subcategory
Telecom and Datacom Connectors

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Option
GENERAL PURPOSE

Total Number of Contacts
8

Orientation
90° Angle (Right)

Shielding
Shielded, EMI Finger

Shell Finish
NICKEL

Reference Standard
UL

Contact Finish
Gold

Reliability
COMMERCIAL

Body Length or Diameter
0.626 inch

PCB Contact Pattern
STAGGERED

Operating Temperature (Max)
85°C

Body Breadth
0.535 inch

Contact Gender
FEMALE

Operating Temperature (Min)
-40°C

UL Flammability Code
94V-0

Empty Shell
NO

Body Depth
0.835 inch

Contact Style
TELCOM, MODULAR

Contact Resistance
50mOhm

Insulation Resistance
500000000Ohm

Body/Shell Style
RECEPTACLE

Number of Ports
1

Durability
750 Cycles

Insertion Force-Max
22.24 N

Withdrawl Force-Min
22.24 N

Number of Positions/Contacts
8p8c (RJ45, Ethernet)

LED Color
Yellow - Green

Download datasheets and manufacturer documentation for METZ CONNECT USA Inc. AJT33L8813-014.

AJT33L8813-014 Overview

The product is packaged in Jack.Through Hole is the mounting type.A variety of tasks can be managed via its 1 ports.With its Board Lock feature, it is more powerful in many ways.

AJT33L8813-014 Features

AJT33L8813-014 Applications

There are a lot of METZ CONNECT USA Inc.
AJT33L8813-014 Modular Connectors applications.

Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
Energy efficient lighting (LED)
LED municipal outdoor and street lighting
