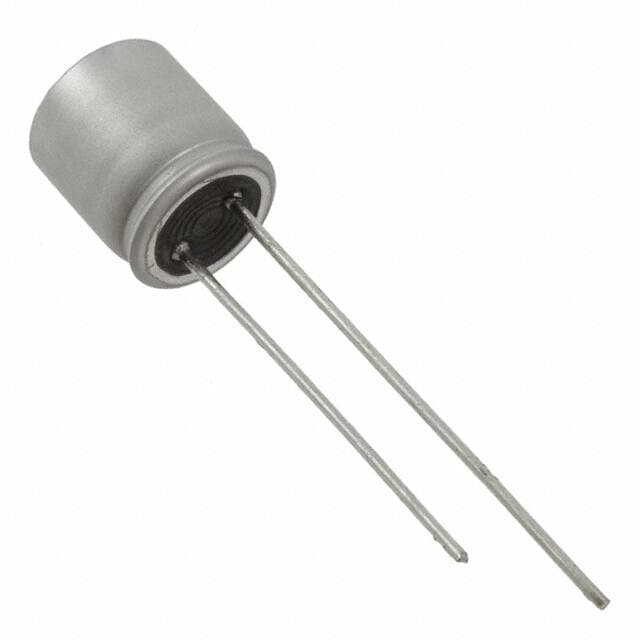

United Chemi-Con APSF160ETD331MH08S
United Chemi-Con APSF160ETD331MH08S

United Chemi-Con APSF160ETD331MH08S

Manufacturer No:

APSF160ETD331MH08S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

330?F ±20% Radial, Can 0.315 8.00mm Tape & Box (TB) 13mOhm NPCAP?-PSF Through Hole Polymer General Purpose

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

APSF160ETD331MH08S information

United Chemi-Con APSF160ETD331MH08S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con APSF160ETD331MH08S.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Tape & Box (TB)
  • Series
  • NPCAP?-PSF
  • Published
  • 2012
  • Size / Dimension
  • 0.315Dia 8.00mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Termination
  • Radial
  • Type
  • Polymer
  • Applications
  • General Purpose
  • Capacitance
  • 330?F
  • Voltage - Rated DC
  • 16V
  • Lead Pitch
  • 3.5052mm
  • ESR (Equivalent Series Resistance)
  • 13mOhm
  • Lead Spacing
  • 0.138 3.50mm
  • Lifetime @ Temp
  • 5000 Hrs @ 105°C
  • Ripple Current
  • 4.7A
  • Life (Hours)
  • 5000 hours
  • Dissipation Factor
  • 0.1 %
  • Height Seated (Max)
  • 0.315 8.00mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for United Chemi-Con APSF160ETD331MH08S.

Datasheets:

APSF160ETD331MH08S Overview


Systems need 4.7A @ 100kHz ripple current at high frequency to be powered.In this electrical device, the ESR (Equivalent Series Resistance) is 13mOhm.Dissipation factor of the part is 0.1 %.An operating temperature of -55°C~105°C is recommended for stable operation.

APSF160ETD331MH08S Features


4.7A @ 100kHz ripple current on a high frequency
a 13mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -55°C~105°C


APSF160ETD331MH08S Applications


There are a lot of United Chemi-Con
APSF160ETD331MH08S applications of aluminum polymer capacitors.


  • LED driver power supplies
  • Phone chargers
  • Motherboards
  • Servers and adapters (laptop power supplies)
  • Medical equipment
  • Switching Power Supply and DC/DC Converter.
  • Buck up Power Supplies of CPU(VRM etc.)
  • Miniature high Power Supply.
