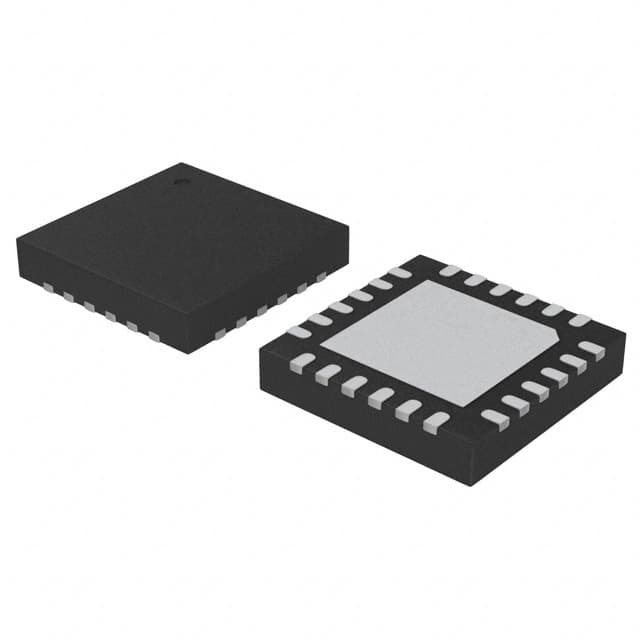

OSRAM AS3683-T

Manufacturer No:

AS3683-T

Manufacturer:

OSRAM

Package:

24-VFQFN Exposed Pad

Description:

PMIC 1MHz 24-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AS3683-T information

OSRAM AS3683-T technical specifications, attributes, parameters and parts with similar specifications to OSRAM AS3683-T.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
24-VFQFN Exposed Pad

Operating Temperature
-30°C~85°C TA

Packaging
Tape & Reel (TR)

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Type
DC DC Regulator

Applications
Backlight

Frequency
1MHz

Number of Outputs
6

Voltage - Output
5.3V

Topology
Switched Capacitor (Charge Pump)

Current - Output / Channel
400mA Flash

Internal Switch(s)
Yes

Voltage - Supply (Max)
5.5V

Voltage - Supply (Min)
3V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for OSRAM AS3683-T.

AS3683-T Overview

To save space on the board, it has a 24-VFQFN Exposed Pad package. LED drivers are designed with 6 outputs.In this case, mounting method is Surface Mount.In this case, the result is a DC DC Regulator with high efficiency.-30°C~85°C TA is the operating temperature of the led driver.Backlight benefits significantly from the program.A frequency of 1MHz is used as the basis for operation.A voltage supply less than 3V could result in undetermined failures.It has been mounted on Surface Mount.It has a voltage output of 5.3V.This device is optimized to deliver a maximum voltage level of 5.5V.

AS3683-T Features

Available in the 24-VFQFN Exposed Pad package
Operating temperature of -30°C~85°C TA
Frequency of 1MHz

AS3683-T Applications

There are a lot of ams
AS3683-T LED Driver ICs applications.

Down lighting
Architectural lighting
Street lighting
Stage and Studio lighting
Refrigeration lighting
Portable lighting
Gallery lighting
Museum lighting
High-end retail lighting
Medical surgery lighting
