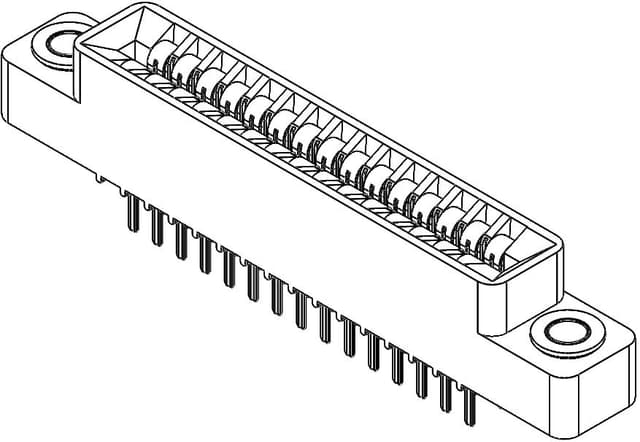

Sullins Connector Solutions ASC36DRTF
Sullins Connector Solutions ASC36DRTF

Sullins Connector Solutions ASC36DRTF

Manufacturer No:

ASC36DRTF

Manufacturer:

Sullins Connector Solutions

Package:

Description:

Description: Card Edge Connector, 72 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Green Insulator, Receptacle

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ASC36DRTF information

Sullins Connector Solutions ASC36DRTF technical specifications, attributes, parameters and parts with similar specifications to Sullins Connector Solutions ASC36DRTF.

  • Type
  • Parameter
  • Pbfree Code
  • Yes
  • RoHS Status
  • RoHS Compliant
  • Part Life Cycle Code
  • Active
  • Ihs Manufacturer
  • SULLINS CONNECTOR SOLUTIONS INC
  • Reach Compliance Code
  • compliant
  • ECCN Code
  • EAR99
  • HTS Code
  • 8536.69.40.40
  • Additional Feature
  • FLOATING BOBBIN
  • Board Mounting Option
  • HOLE .112-.124
  • Body Breadth
  • 0.4 inch
  • Body Depth
  • 0.431 inch
  • Body Length
  • 4.475 inch
  • Body/Shell Style
  • RECEPTACLE
  • Connector Type
  • CARD EDGE CONNECTOR
  • Contact Finish Mating
  • NOT SPECIFIED
  • Contact Finish Termination
  • Gold (Au) - with Nickel (Ni) barrier
  • Contact Material
  • BERYLLIUM COPPER
  • Contact Pattern
  • RECTANGULAR
  • Contact Resistance
  • 10 mΩ
  • Contact Style
  • BELLOWED TYPE
  • Dielectric Withstanding Voltage
  • 600VDC V
  • Filter Feature
  • NO
  • Insulation Resistance
  • 5000000000 Ω
  • Insulator Color
  • GREEN
  • JESD-609 Code
  • e4
  • Mating Contact Pitch
  • 0.1 inch
  • Mixed Contacts
  • NO
  • Mounting Style
  • STRAIGHT
  • Mounting Type
  • BOARD
  • Number Of Connectors
  • ONE
  • Number Of PCB Rows
  • 2
  • Number of Rows Loaded
  • 2
  • Operating Temperature-Max
  • 220 °C
  • Operating Temperature-Min
  • -65 °C
  • PCB Contact Pattern
  • RECTANGULAR
  • PCB Contact Row Spacing
  • 3.556 mm
  • Plating Thickness
  • 10u inch
  • Rated Current (Signal)
  • 3 A
  • Reference Standard
  • UL, CSA
  • Terminal Length
  • 0.2 inch
  • Terminal Pitch
  • 2.54 mm
  • Termination Type
  • SOLDER
  • Total Number of Contacts
  • 72

Download datasheets and manufacturer documentation for Sullins Connector Solutions ASC36DRTF.

Datasheets:

Environmental Information:

ASC36DRTF Overview


The material was packaged in accordance with the specifications provided by Tube.You should mount it with type Through Hole.Connecting the device to the connector socket Full Bellows is the method used by the device.

ASC36DRTF Features




ASC36DRTF Applications


There are a lot of Sullins Connector Solutions
ASC36DRTF Edgeboard Connectors applications.


  • Medical Instrumentation and medical imaging
  • Music recording
  • Digital signal processing
  • Scientific instruments
  • Rotary encoder
  • Displaying
  • Transducer
  • Microcontrollers.
  • Digital Storage Oscilloscope
  • Scientific instruments.
