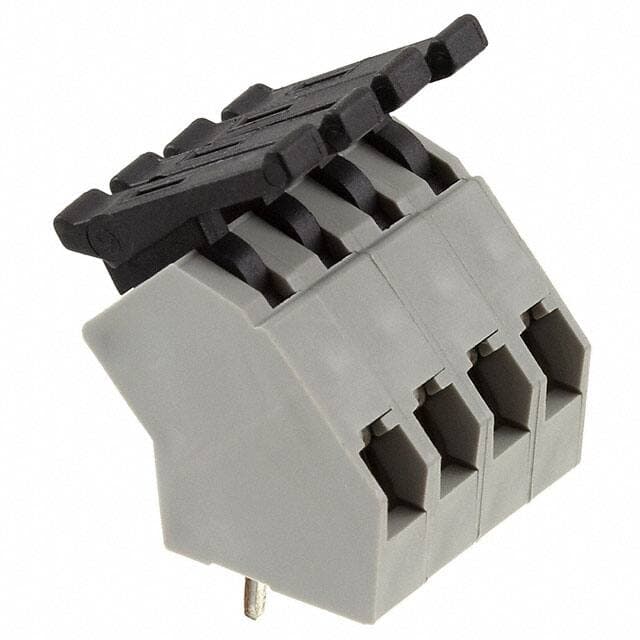

METZ CONNECT USA Inc. AST1350404

Manufacturer No:

AST1350404

Manufacturer:

Package:

Description:

0.197 5.00mm Gray Bulk Polyamide (PA66), Nylon 6/6 Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels 14-28 AWG

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

AST1350404 information

METZ CONNECT USA Inc. AST1350404 technical specifications, attributes, parameters and parts with similar specifications to METZ CONNECT USA Inc. AST1350404.

Type
Parameter

Factory Lead Time
13 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Housing Material
Polyamide (PA66), Nylon 6/6

Contact Material - Plating
Copper Alloy - Tin Plated

Clamp Material - Plating
Steel

Operating Temperature
-40°C~105°C

Packaging
Bulk

Feature
Lever Actuated

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Solder

Color
Gray

Voltage - Rated
250V

Pitch
0.197 5.00mm

Depth
19.65mm

Current Rating
24A

Number of Contacts
4

Wire Gauge
14-28 AWG

Max Supply Voltage
300V

Max Current Rating
15A

Number of Levels
1

Current
13A

Wire Gauge (Max)
28 AWG

Wire/Cable Gauge
28 AWG

Positions Per Level
4

Mating Orientation
45° (135°) Angle with Board

Wire Termination
Screwless - Spring Cage, Tension Clamp

Length
20mm

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for METZ CONNECT USA Inc. AST1350404.

AST1350404 Overview

The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.Its Lever Actuated feature renders it more powerful in many ways.The part is mounted by Through Hole.The device runs in -40°C~105°C Operating Temperature.The supply voltage of this chip should not exceed 300V.

AST1350404 Features

AST1350404 Applications

There are a lot of METZ CONNECT USA Inc.
AST1350404 Terminal Blocks applications.

Industrial Automation
Transportation
Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
