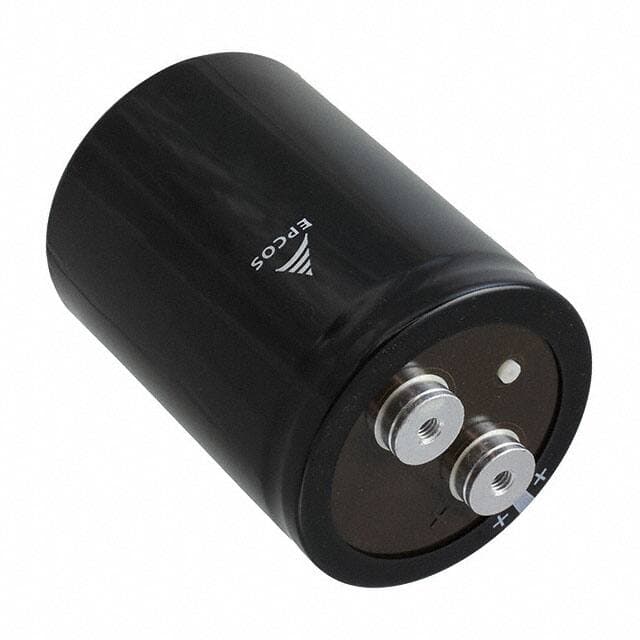

TDK B43458A9688M000

Manufacturer No:

B43458A9688M000

Manufacturer:

TDK

Package:

Radial, Can - Screw Terminals

Description:

B43458 6800?F Capacitor ±20% Bulk Chassis Mount 3.028Dia 76.90mm -40°C~85°C Polar Radial, Can - Screw Terminals

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

B43458A9688M000 information

TDK B43458A9688M000 technical specifications, attributes, parameters and parts with similar specifications to TDK B43458A9688M000.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Chassis Mount

Package / Case
Radial, Can - Screw Terminals

Surface Mount
NO

Terminal Shape
BINDING POST

Mounting Feature
STUD MOUNT

Dielectric Material
ALUMINUM (WET)

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
B43458

Published
2012

Size / Dimension
3.028Dia 76.90mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Applications
General Purpose

Voltage - Rated
400V

Capacitance
6800?F

Packing Method
Box

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

ESR (Equivalent Series Resistance)
11mOhm @ 100Hz

Rated (DC) Voltage (URdc)
400V

Lifetime @ Temp
12000 Hrs @ 85°C

Leakage Current
9.58298mA

Polarization
Polar

Impedance
14mOhm

Ripple Current @ Low Frequency
19A @ 100Hz

Diameter
76.9mm

Height Seated (Max)
5.677 144.20mm

Length
143.2mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TDK B43458A9688M000.

Datasheets:

tdkelectronicsinc-b43456a5338m000-datasheets-9014.pdf

B43458A9688M000 Overview

A full performance of 11mOhm @ 100Hz requires the ESR (Equivalent Series Resistance).During the lowest charge, ripple current is 19A @ 100Hz.You should keep the seated height (Max) below 5.677 144.20mm.Set URdc to 400V as the rated voltage (DC).When operating at -40°C~85°C, high efficiency can be achieved.

B43458A9688M000 Features

the ripple current is 19A @ 100Hz.
an operating temperature of -40°C~85°C

B43458A9688M000 Applications

There are a lot of TDK Electronics Inc.
B43458A9688M000 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
