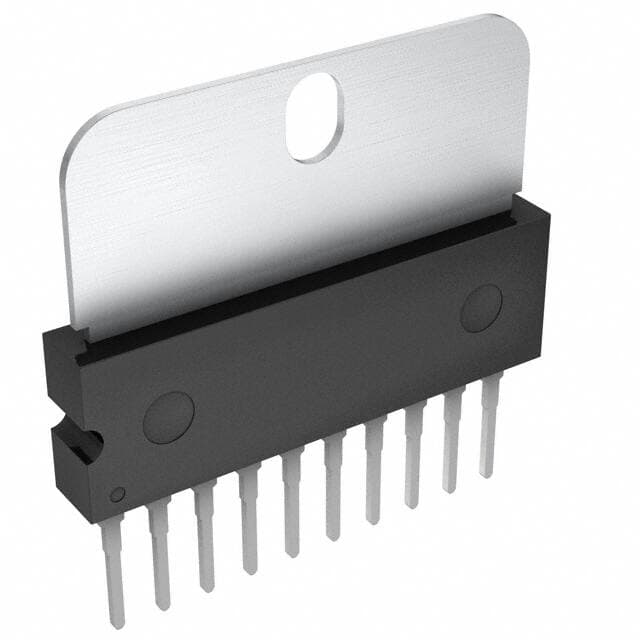

ROHM BA6222

Manufacturer No:

BA6222

Manufacturer:

ROHM

Package:

DIP, SIP10,.06

Description:

Brush DC Motor Controller, 2A, BIPolar, ROHS COMPLIANT, HSIP-10

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BA6222 information

ROHM BA6222 technical specifications, attributes, parameters and parts with similar specifications to ROHM BA6222.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
ROHM CO LTD

Part Package Code
SIP

Package Description
DIP, SIP10,.06

Pin Count
10

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Analog IC - Other Type
BRUSH DC MOTOR CONTROLLER

JESD-30 Code
R-XDIP-T10

JESD-609 Code
e2

Length
26.5 mm

Number of Functions
1

Number of Terminals
10

Operating Temperature-Max
125 °C

Operating Temperature-Min
-55 °C

Output Current-Max
2 A

Package Body Material
UNSPECIFIED

Package Code
DIP

Package Equivalence Code
SIP10,.06

Package Shape
RECTANGULAR

Package Style
IN-LINE

Qualification Status
Not Qualified

Seated Height-Max
3.8 mm

Supply Current-Max (Isup)
60 mA

Supply Voltage-Max (Vsup)
18 V

Supply Voltage-Min (Vsup)
8 V

Supply Voltage-Nom (Vsup)
12 V

Surface Mount
NO

Technology
BIPOLAR

Temperature Grade
MILITARY

Terminal Finish
Tin/Copper (Sn/Cu)

Terminal Form
THROUGH-HOLE

Terminal Pitch
2.54 mm

Terminal Position
DUAL

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Width
8.4 mm

Download datasheets and manufacturer documentation for ROHM BA6222.

Datasheets:

rohmsemiconductor-ba6222-datasheets-7092.pdf

BA6222 Overview

This package was designed with Tubein mind.10-SIP Exposed Tabcases are included with the part.The part should be mounted by Through Hole.I believe it is suitable for the component connected to General Purpose.There is a capability for the device to provide 8V~18V volts.This device operates at a temperature of -25°C~125°C TJ.Drivers controllers is possible to classify the motor type as Brushed DC.This part provides 10terminations.If the voltage is applied to the load at the rate of [0], the load will be affected.I would like to remind you that this amplifier should be operated at 12V.The recommended way to mount it is Through Hole.Drivers controllers is recommended to keep the part output current at 2A.This device utilizes the BRUSH DC MOTOR CONTROLLERanalog integrated circuit.The BA62*part number allows us to locate it.A device with 10pins is available.Drivers controllers belongs to the Motion Control Electronics series.There is 18V supply voltage required for this driver.

BA6222 Features

Applications : General Purpose
Load voltage across the chip 8V~18V
base on BA62* number

BA6222 Applications

There are a lot of ROHM Semiconductor
BA6222 motor drivers applications.

Automotive applications
Dome
Dash
Footwell lighting
Indicator
Telltale lights
Infotainment backlighting
Tail lights
Turn signals
Brake lights
