TDK CKG45NX7T2E225M500JH
TDK CKG45NX7T2E225M500JH

TDK CKG45NX7T2E225M500JH

Manufacturer No:

CKG45NX7T2E225M500JH

Manufacturer:

TDK

Package:

Stacked SMD, 2 J-Lead

Description:

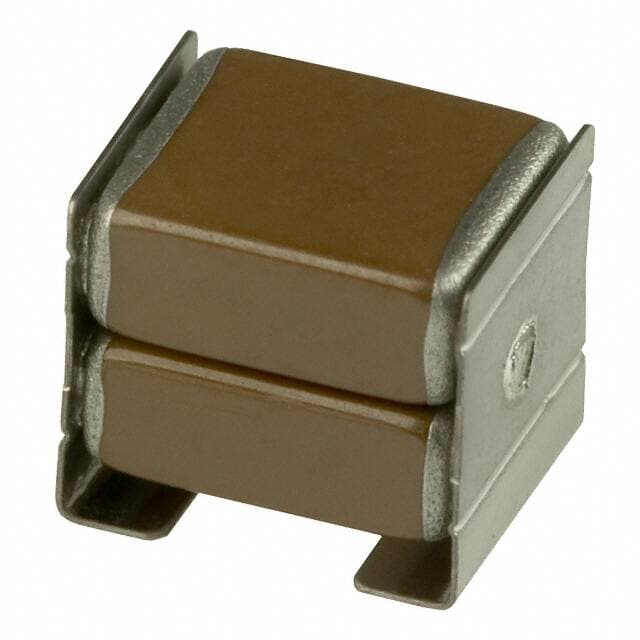

MEGACAP, CKG 2.2μF Ceramic Capacitor ±20% X7T 0.197Lx0.138W 5.00mmx3.50mm -55°C~125°C 2 Terminations Low ESL (Stacked) Surface Mount, MLCC Stacked SMD, 2 J-Lead

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CKG45NX7T2E225M500JH information

TDK CKG45NX7T2E225M500JH technical specifications, attributes, parameters and parts with similar specifications to TDK CKG45NX7T2E225M500JH.

  • Type
  • Parameter
  • Lifecycle Status
  • PRODUCTION (Last Updated: 1 month ago)
  • Factory Lead Time
  • 20 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, MLCC
  • Package / Case
  • Stacked SMD, 2 J-Lead
  • Terminal Shape
  • J BEND
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • MEGACAP, CKG
  • Published
  • 2005
  • Size / Dimension
  • 0.197Lx0.138W 5.00mmx3.50mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Feature
  • Low ESL (Stacked)
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Metal
  • ECCN Code
  • EAR99
  • Temperature Coefficient
  • X7T
  • Terminal Finish
  • Matte Tin (Sn) - with Nickel (Ni) barrier
  • Composition
  • Ceramic
  • Applications
  • SMPS Filtering, Bypass, Decoupling
  • Capacitance
  • 2.2μF
  • Voltage - Rated DC
  • 250V
  • Packing Method
  • TR, 13 Inch
  • Depth
  • 3.5mm
  • Case Code (Metric)
  • 4532
  • Case Code (Imperial)
  • 1812
  • Temperature Characteristics Code
  • X7T
  • Multilayer
  • Yes
  • Lead Style
  • J-Lead
  • Height
  • 5mm
  • Thickness (Max)
  • 0.217 5.50mm
  • Thickness
  • 5.5118mm
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for TDK CKG45NX7T2E225M500JH.

Datasheets:

PCN Part Number:

CKG45NX7T2E225M500JH Overview


The size/dimension of the program on this device is 0.197Lx0.138W 5.00mmx3.50mm.In general, the temperature coefficient of resistance is defined as the change in electrical resistance of a substance per degree of temperature change.With a voltage of 250V, it can operate.

CKG45NX7T2E225M500JH Features


a size/dimension of 0.197Lx0.138W 5.00mmx3.50mm
with X7T being the highest temperature coefficient
with the voltage - Rated DC of 250V


CKG45NX7T2E225M500JH Applications


There are a lot of TDK Corporation
CKG45NX7T2E225M500JH applications of ceramic capacitors.


  • General electronic equipment
  • Mobile devices
  • Servers, PCs, tablets
  • Power supply circuit
