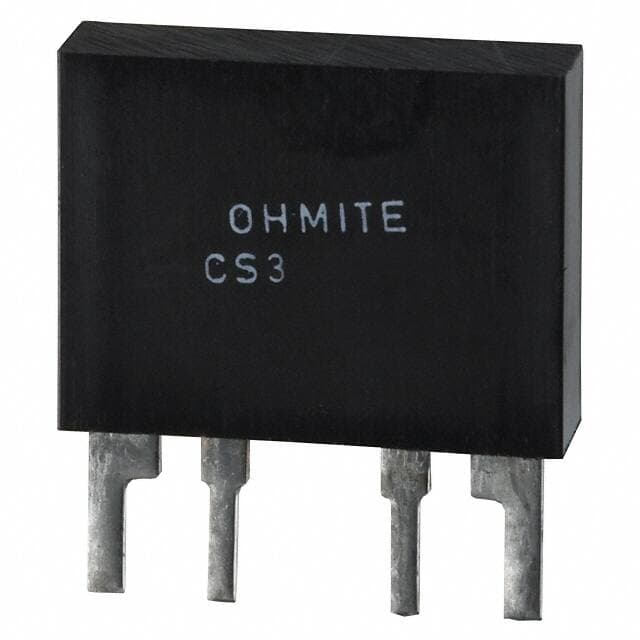

Ohmite CS3FR050E
Ohmite CS3FR050E

Ohmite CS3FR050E

Manufacturer No:

CS3FR050E

Manufacturer:

Ohmite

Package:

4-SIP

Description:

Through Hole FIXED RESISTOR, 50mOhm, Metal Element,

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CS3FR050E information

Ohmite CS3FR050E technical specifications, attributes, parameters and parts with similar specifications to Ohmite CS3FR050E.

  • Type
  • Parameter
  • Factory Lead Time
  • 18 Weeks
  • Mount
  • Through Hole
  • Package / Case
  • 4-SIP
  • Terminal Shape
  • FLAT
  • Operating Temperature
  • -55°C~150°C
  • Packaging
  • Bulk
  • Series
  • CS3
  • Published
  • 2006
  • Size / Dimension
  • 0.854Lx0.211W 21.70mmx5.35mm
  • Tolerance
  • ±1%
  • JESD-609 Code
  • e2
  • Feature
  • Current Sense, Moisture Resistant, Non-Inductive
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 4
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Temperature Coefficient
  • ±60ppm/°C
  • Resistance
  • 50mOhm
  • Terminal Finish
  • Tin/Silver (Sn/Ag)
  • Composition
  • Metal Element
  • Voltage - Rated
  • 50mV
  • Additional Feature
  • NON-INDUCTIVE, PRECISION
  • Subcategory
  • Fixed Resistors
  • Power Rating
  • 3W
  • Max Power Dissipation
  • 3W
  • Technology
  • WIRE WOUND
  • Depth
  • 5.35mm
  • Resistor Type
  • FIXED RESISTOR
  • Rated Power Dissipation (P)
  • 3W
  • Lead Pitch
  • 7.62mm
  • Lead Length
  • 8mm
  • Lead Diameter
  • 800 ?m
  • Size Code
  • 8521
  • Height
  • 16.4mm
  • Height Seated (Max)
  • 0.654 16.60mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Ohmite CS3FR050E.

Datasheets:

Description: Ohmite Through Hole Resistors CS3FR050E are high-power, four-terminal, through-hole resistors with a resistance value of 0.05 ohms and a power rating of 3 watts. They feature a tolerance of 1% and are packaged in a 4-pin SIP (Single In-line Package).

Features:
- High power rating of 3 watts
- Resistance value of 0.05 ohms
- Tolerance of 1%
- 4-pin SIP package

Applications: Ohmite Through Hole Resistors CS3FR050E are suitable for a wide range of applications, including power supplies, motor control, and audio equipment. They are also suitable for use in high-current, low-voltage circuits, such as those found in automotive and industrial applications.
