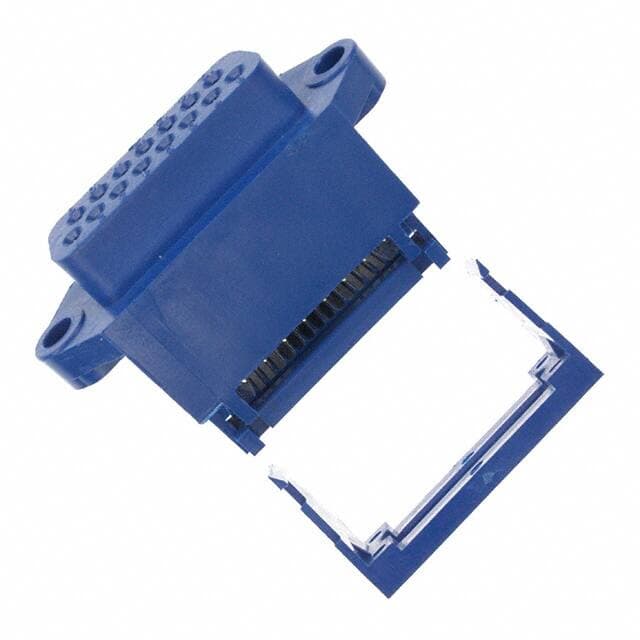

CW Industries CWR-181-15-0203

Manufacturer No:

CWR-181-15-0203

Manufacturer:

Package:

Description:

CWR Series D-Sub Plug, Female Sockets 15-Position Signal IDC, Ribbon Cable 2 DA A Free Hanging (In-Line) Phosphor Bronze Tin

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CWR-181-15-0203 information

CW Industries CWR-181-15-0203 technical specifications, attributes, parameters and parts with similar specifications to CW Industries CWR-181-15-0203.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Material
Phosphor Bronze

Mount
Free Hanging

Mounting Type
Free Hanging (In-Line)

Dielectric Material
Thermoplastic

Operating Temperature
-55°C~125°C

Packaging
Bulk

Series
CWR

Published
2002

JESD-609 Code
e3

Feature
Feed Through, Strain Relief

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
IDC, Ribbon Cable

Connector Type
Plug, Female Sockets

Number of Positions
15

Color
Blue

Number of Rows
2

Subcategory
D Type Connectors

Contact Type
Signal

Total Number of Contacts
15

Current Rating
1A

Reference Standard
UL

Reliability
COMMERCIAL

Body Breadth
0.49 inch

Body Depth
0.81 inch

Rated Current (Signal)
1A

Wire Gauge
28-30 AWG

Insulation Resistance
5000000000Ohm

Flange Feature
Housing/Shell (Unthreaded)

Mating Contact Pitch
0.108 inch

Dielectric Withstanding Voltage
500VDC V

Connector Style
D-Sub

Shell Size, Connector Layout
2 DA A

Contact Design
PREASSEM CONN

Height
26.4mm

Width
12.5mm

Contact Finish Thickness
100.0?in 2.54?m

Plating Thickness
100?in

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-0

Lead Free
Lead Free

Download datasheets and manufacturer documentation for CW Industries CWR-181-15-0203.

CWR-181-15-0203 Overview

The product comes in a package of Plug, Female Sockets.Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the CWR Series of products.A number of features make it more powerful because of its Feed Through, Strain Relief feature.Free Hanging mounts the part.There is no operating temperature for the device.

CWR-181-15-0203 Features

CWR series

CWR-181-15-0203 Applications

There are a lot of CW Industries
CWR-181-15-0203 D-Sub Connectors applications.

Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
