CW Industries CWR-280-37-0203
CW Industries CWR-280-37-0203

CW Industries CWR-280-37-0203

Manufacturer No:

CWR-280-37-0203

Manufacturer:

CW Industries

Package:

Description:

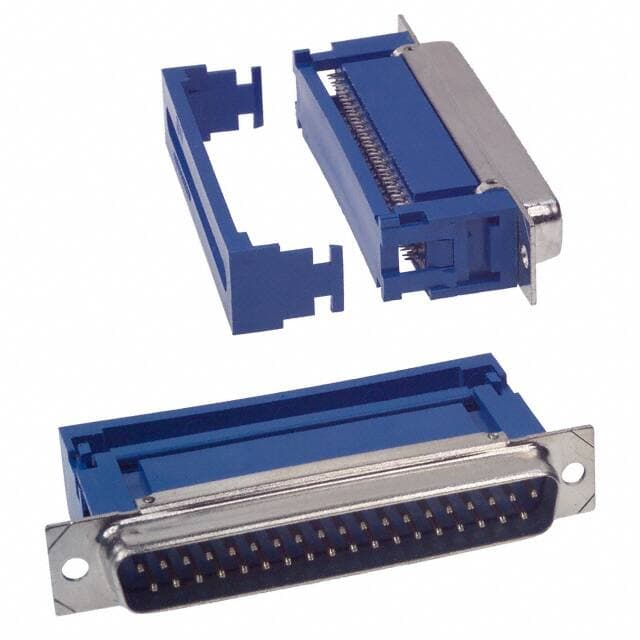

CWR Series D-Sub Receptacle, Male Pins 37-Position Signal IDC, Ribbon Cable 4 DC C Free Hanging (In-Line) Phosphor Bronze Tin Steel, Tin Plated

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CWR-280-37-0203 information

CW Industries CWR-280-37-0203 technical specifications, attributes, parameters and parts with similar specifications to CW Industries CWR-280-37-0203.

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Contact Material
  • Phosphor Bronze
  • Mount
  • Free Hanging
  • Mounting Type
  • Free Hanging (In-Line)
  • Dielectric Material
  • Thermoplastic
  • Shell Material, Finish
  • Steel, Tin Plated
  • Packaging
  • Bulk
  • Series
  • CWR
  • Published
  • 2002
  • Feature
  • Feed Through, Shielded, Strain Relief
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • IDC, Ribbon Cable
  • Connector Type
  • Receptacle, Male Pins
  • Number of Positions
  • 37
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -55°C
  • Color
  • Blue
  • Number of Rows
  • 2
  • Subcategory
  • D Type Connectors
  • Contact Type
  • Signal
  • Total Number of Contacts
  • 37
  • Current Rating
  • 1A
  • Reference Standard
  • UL
  • Reliability
  • COMMERCIAL
  • Body Breadth
  • 0.5 inch
  • Body Depth
  • 0.53 inch
  • Rated Current (Signal)
  • 1A
  • Wire Gauge
  • 28-30 AWG
  • Insulation Resistance
  • 5000000000Ohm
  • Flange Feature
  • Housing/Shell (Unthreaded)
  • Mating Contact Pitch
  • 0.108 inch
  • Dielectric Withstanding Voltage
  • 500VDC V
  • Connector Style
  • D-Sub
  • Mating Contact Row Spacing
  • 0.11 inch
  • Shell Size, Connector Layout
  • 4 DC C
  • Height
  • 26mm
  • Length
  • 69.6mm
  • Width
  • 12.5mm
  • Contact Finish Thickness
  • 100.0?in 2.54?m
  • Plating Thickness
  • 100?in
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for CW Industries CWR-280-37-0203.

Datasheets:

CWR-280-37-0203 Overview


Packaging is in the form of Receptacle, Male Pins.The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.A product of the CWR Series, it belongs to the range of products of that series.A temperature below 125°C is best for using it.The device must run at -55°C degrees.A number of features make the Feed Through, Shielded, Strain Relief feature more powerful.Free Hanging represents the mounting point for the part.

CWR-280-37-0203 Features


CWR series


CWR-280-37-0203 Applications


There are a lot of CW Industries
CWR-280-37-0203 D-Sub Connectors applications.


  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
  • All Electrical Machinery
  • Refrigeration control
