CW Industries CWR-281-37-0000

Manufacturer No:

CWR-281-37-0000

Manufacturer:

Package:

Description:

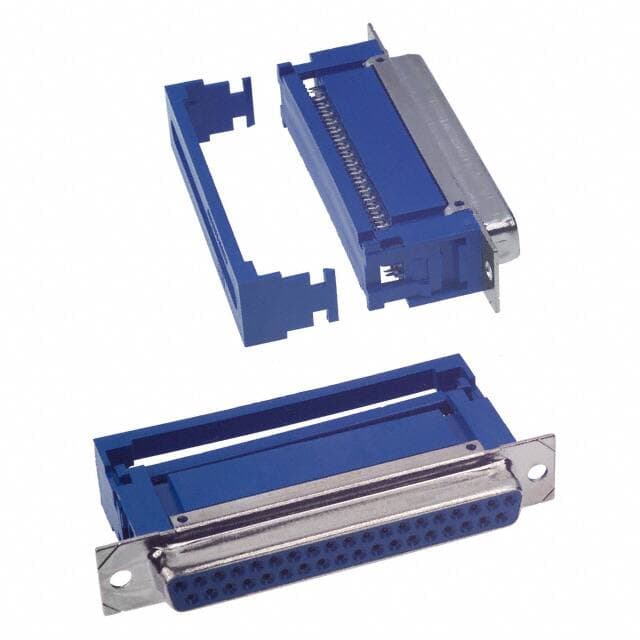

CWR Series D-Sub Plug, Female Sockets 37-Position Female Signal IDC, Ribbon Cable 4 DC C Free Hanging (In-Line) Phosphor Bronze Gold Steel, Tin Plated

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

CWR-281-37-0000 information

CW Industries CWR-281-37-0000 technical specifications, attributes, parameters and parts with similar specifications to CW Industries CWR-281-37-0000.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Material
Phosphor Bronze

Mount
Free Hanging

Mounting Type
Free Hanging (In-Line)

Dielectric Material
Thermoplastic

Shell Material, Finish
Steel, Tin Plated

Packaging
Bulk

Series
CWR

Published
2002

Feature
Feed Through, Shielded, Strain Relief

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
IDC, Ribbon Cable

ECCN Code
EAR99

Connector Type
Plug, Female Sockets

Number of Positions
37

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Color
Blue

Number of Rows
2

Gender
Female

Additional Feature
DAISY CHAIN CONNECTOR

HTS Code
8536.69.40.30

MIL Conformance
YES

Contact Type
Signal

Total Number of Contacts
37

Current Rating
1A

Shell Finish
TIN

Reference Standard
UL, CSA

Contact Finish
Gold

Reliability
MIL-C-83503

Body Breadth
0.53 inch

Body Depth
0.8 inch

Wire Gauge
28-30 AWG

Flange Feature
Housing/Shell (Unthreaded)

Mating Contact Pitch
0.108 inch

Connector Style
D-Sub

Mating Contact Row Spacing
0.11 inch

Shell Size, Connector Layout
4 DC C

Contact Design
PREASSEM CONN

Height
26mm

Length
69.6mm

Width
12.5mm

Contact Finish Thickness
10.0?in 0.25?m

Plating Thickness
10?in

Material Flammability Rating
UL94 V-0

Download datasheets and manufacturer documentation for CW Industries CWR-281-37-0000.

CWR-281-37-0000 Overview

The connector type Plug, Female Sockets refers to the connector type.The device's mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.It belongs to the CWR Series of products.In addition, there are other features such as DAISY CHAIN CONNECTOR, to mention only a few.It's best to use it when the temperature is below 125°C.This device must operate at a minimum temperature of -55°C.Its Feed Through, Shielded, Strain Relief feature renders it more powerful in many ways.The part is mounted by Free Hanging.

CWR-281-37-0000 Features

CWR series

CWR-281-37-0000 Applications

There are a lot of CW Industries
CWR-281-37-0000 D-Sub Connectors applications.

Industrial Automation
Transportation
Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
