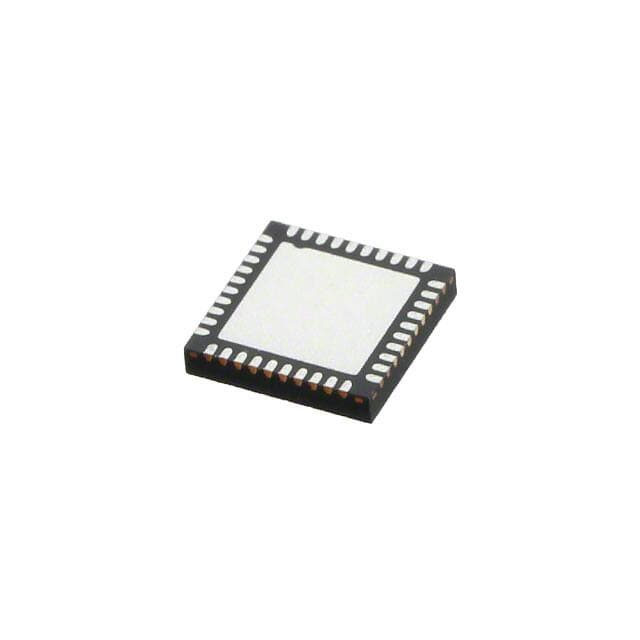

Renesas DA14580-01AT2

Manufacturer No:

DA14580-01AT2

Manufacturer:

Renesas

Package:

QFN-40

Description:

Description: Telecom Circuit, 1-Func, 5 X 5 MM, QFN-40

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DA14580-01AT2 information

Renesas DA14580-01AT2 technical specifications, attributes, parameters and parts with similar specifications to Renesas DA14580-01AT2.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
DIALOG SEMICONDUCTOR GMBH

Package Description
QFN-40

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

JESD-30 Code
S-XQCC-N40

Length
5 mm

Number of Functions
1

Number of Terminals
40

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

Package Body Material
UNSPECIFIED

Package Code
HVQCCN

Package Shape
SQUARE

Package Style
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

Seated Height-Max
0.9 mm

Supply Voltage-Nom
1 V

Surface Mount
YES

Telecom IC Type
TELECOM CIRCUIT

Temperature Grade
INDUSTRIAL

Terminal Form
NO LEAD

Terminal Pitch
0.4 mm

Width
5 mm

Download datasheets and manufacturer documentation for Renesas DA14580-01AT2.

DA14580-01AT2 Overview

The 40-VFQFN Exposed Pad package saves space on the board. The RF transceiver's mounting method adopted is Surface Mount.Initially, it emerges as a TxRx + MCU with transceiver RF's high efficiency and a high degree of reliability.In order to provide high reliability, advanced transceiver RF' packaging Cut Tape (CT) is used.The mount is attached to Surface Mount.This system operates at 2.4GHz frequency.

DA14580-01AT2 Features

40-VFQFN Exposed Pad package
Surface Mount for mounting
TxRx + MCU
Cut Tape (CT) is used

DA14580-01AT2 Applications

There are a lot of Dialog Semiconductor GmbH
DA14580-01AT2 RF Transceiver ICs applications.

Chemical Sensors
Security Systems
M2M Communication
Remote Device Management
Low-power IoT applications
LoT applications
Power Amplifier (PA)
Low Noise Amplifier (LNA)
Transmit
Receive
