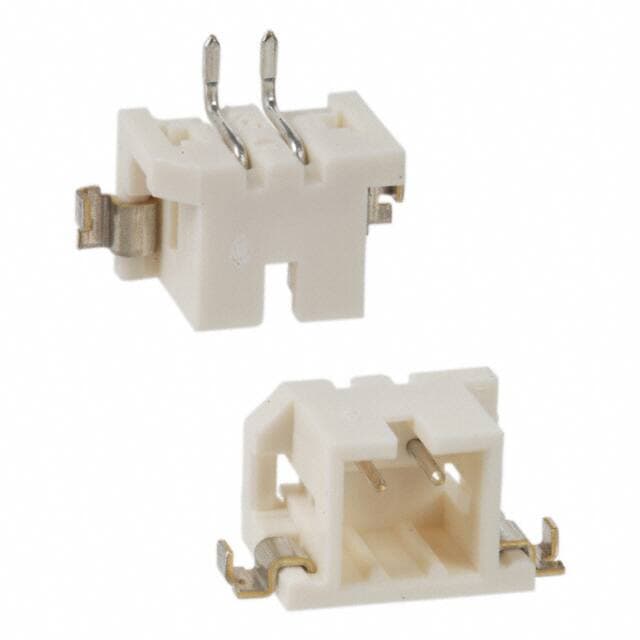

HIROSE DF3DZ-2P-2H(21)

Manufacturer No:

DF3DZ-2P-2H(21)

Manufacturer:

Package:

Description:

DF3 Series 1-Row Header Solder Brass Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA), Nylon 2-Position Board to Board or Cable 0.220 5.60mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DF3DZ-2P-2H(21) information

HIROSE DF3DZ-2P-2H(21) technical specifications, attributes, parameters and parts with similar specifications to HIROSE DF3DZ-2P-2H(21).

Type
Parameter

Contact Material
Brass

Mount
Surface Mount

Mounting Type
Surface Mount, Right Angle

Contact Shape
Circular

Insulation Material
Polyamide (PA), Nylon

Housing Material
Polyamide

Operating Temperature
-55°C~105°C

Packaging
Tape & Reel (TR)

Series
DF3

Published
2008

Pbfree Code
yes

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
2

Number of Rows
1

Voltage - Rated
250V

HTS Code
8536.69.40.40

Fastening Type
Push-Pull

Contact Finish - Mating
Tin

MIL Conformance
NO

DIN Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Total Number of Contacts
2

Orientation
Right Angle

Depth
8.4mm

Insulation Height
0.220 5.60mm

Style
Board to Board or Cable

Number of Positions Loaded
All

Current Rating
3A

Pitch - Mating
0.079 2.00mm

Insulation Color
Beige

Shrouding
Shrouded - 4 Wall

Contact Gender
Male

UL Flammability Code
94V-0

Housing Color
Black

Contact Resistance
30mOhm

Max Voltage Rating (AC)
30V

Max Current Rating
1A

Length
11.5mm

Material Flammability Rating
UL94 V-0

Radiation Hardening
No

Download datasheets and manufacturer documentation for HIROSE DF3DZ-2P-2H(21).

DF3DZ-2P-2H(21) Overview

The product is packaged in Header.This device is mounted in the Surface Mount, Right Angle position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.There is a product in the DF3 Series.Part Surface Mount is mounted to the part.As a result, the device runs at -55°C~105°C Operating Temperature.

DF3DZ-2P-2H(21) Features

DF3 series

DF3DZ-2P-2H(21) Applications

There are a lot of Hirose Electric Co Ltd
DF3DZ-2P-2H(21) Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
