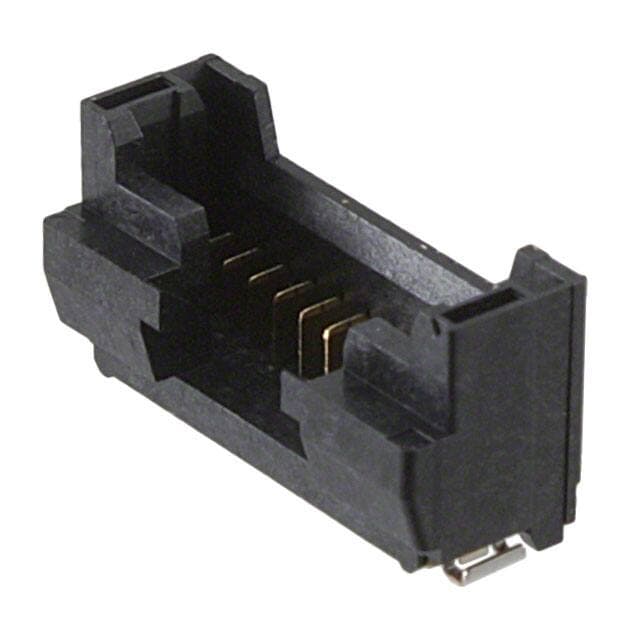

HIROSE DF50A-11P-1V(51)
HIROSE DF50A-11P-1V(51)

HIROSE DF50A-11P-1V(51)

Manufacturer No:

DF50A-11P-1V(51)

Manufacturer:

HIROSE

Package:

Description:

Board Connector, 11 Contact(s), 1 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DF50A-11P-1V(51) information

HIROSE DF50A-11P-1V(51) technical specifications, attributes, parameters and parts with similar specifications to HIROSE DF50A-11P-1V(51).

  • Type
  • Parameter
  • RoHS Status
  • RoHS Compliant
  • Part Life Cycle Code
  • Active
  • Ihs Manufacturer
  • HIROSE ELECTRIC CO LTD
  • Reach Compliance Code
  • unknown
  • Factory Lead Time
  • 12 Weeks
  • Samacsys Manufacturer
  • Hirose
  • Board Mounting Option
  • SOLDER HOLDING FLANGE
  • Connector Type
  • BOARD CONNECTOR
  • Contact Finish Mating
  • NOT SPECIFIED
  • Contact Finish Termination
  • Tin (Sn)
  • Contact Gender
  • MALE
  • Contact Material
  • NOT SPECIFIED
  • Contact Pattern
  • RECTANGULAR
  • Contact Resistance
  • 30 mΩ
  • Contact Style
  • BLADE PIN-SKT
  • DIN Conformance
  • NO
  • Dielectric Withstanding Voltage
  • 300VAC V
  • Durability
  • 30 Cycles
  • Filter Feature
  • NO
  • IEC Conformance
  • NO
  • Insulation Resistance
  • 500000000 Ω
  • Insulator Color
  • BLACK
  • Insulator Material
  • LIQUID CRYSTAL POLYMER
  • JESD-609 Code
  • e3
  • Mating Contact Pitch
  • 0.039 inch
  • Mating Information
  • MULTIPLE MATING PARTS AVAILABLE
  • Mixed Contacts
  • NO
  • Mounting Option 1
  • LOCKING
  • Mounting Style
  • STRAIGHT
  • Mounting Type
  • BOARD
  • Number Of Connectors
  • ONE
  • Number Of PCB Rows
  • 1
  • Number of Rows Loaded
  • 1
  • Operating Temperature-Max
  • 85 °C
  • Operating Temperature-Min
  • -35 °C
  • Option
  • GENERAL PURPOSE
  • PCB Contact Pattern
  • RECTANGULAR
  • Polarization Key
  • POLARIZED HOUSING
  • Rated Current (Signal)
  • 1 A
  • Reference Standard
  • UL
  • Terminal Pitch
  • 1 mm
  • Termination Type
  • SURFACE MOUNT
  • Total Number of Contacts
  • 11
  • UL Flammability Code
  • 94V-0

Download datasheets and manufacturer documentation for HIROSE DF50A-11P-1V(51).

Datasheets:

DF50A-11P-1V(51) Overview


Currently, it is packaged in Header.The mounting type of the device is Surface Mount.A Cut Tape (CT) case is used to package the product.A product of the DF50 Series, it belongs to the range of products of that series.A number of features make the Solder Retention feature more powerful.Surface Mount represents the mounting point for the part.-35°C~85°C Operating Temperature is the default operating temperature for the device.

DF50A-11P-1V(51) Features


DF50 series


DF50A-11P-1V(51) Applications


There are a lot of Hirose Electric Co Ltd
DF50A-11P-1V(51) Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
