LITTELFUSE DHG20C600QB
LITTELFUSE DHG20C600QB

LITTELFUSE DHG20C600QB

Manufacturer No:

DHG20C600QB

Manufacturer:

LITTELFUSE

Package:

TO-3P-3, SC-65-3

Description:

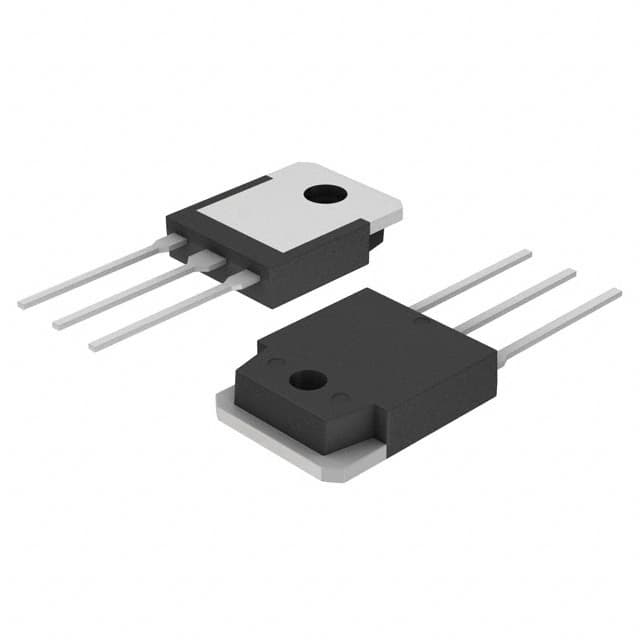

Standard Rectifier Diode 1 Pair Common Cathode Fast Recovery =< 500ns, > 200mA (Io) -55°C~150°C 10A 600V-DC 2-Element TO-3P-3, SC-65-3 Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DHG20C600QB information

LITTELFUSE DHG20C600QB technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE DHG20C600QB.

  • Type
  • Parameter
  • Factory Lead Time
  • 20 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-3P-3, SC-65-3
  • Weight
  • 5.500006g
  • Diode Element Material
  • SILICON
  • Packaging
  • Tube
  • Published
  • 2006
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -55°C
  • Additional Feature
  • FREE WHEELING DIODE, LOW LEAKAGE CURRENT, SNUBBER DIODE
  • HTS Code
  • 8541.10.00.80
  • Max Power Dissipation
  • 70W
  • Terminal Position
  • SINGLE
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 3
  • Qualification Status
  • Not Qualified
  • Number of Elements
  • 2
  • Element Configuration
  • Common Cathode
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 15?A @ 600V
  • Voltage - Forward (Vf) (Max) @ If
  • 2.35V @ 10A
  • Max Reverse Leakage Current
  • 1.5mA
  • Operating Temperature - Junction
  • -55°C~150°C
  • Max Surge Current
  • 100A
  • Application
  • FAST SOFT RECOVERY
  • Max Reverse Voltage (DC)
  • 600V
  • Average Rectified Current
  • 10A
  • Number of Phases
  • 1
  • Reverse Recovery Time
  • 35 ns
  • Diode Configuration
  • 1 Pair Common Cathode
  • Recovery Time
  • 35 ns
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for LITTELFUSE DHG20C600QB.

Datasheets:

DHG20C600QB Overview


We should be monitoring the surge current and keeping it below 100A.When reverse biased, its maximal reverse leakage current is 1.5mA, which corresponds to its maximum reverse leakage current.During operation of this electronic or electrical device, the maximum amount of 70W heat is produced (energy loss or waste).

DHG20C600QB Features




DHG20C600QB Applications


There are a lot of IXYS
DHG20C600QB applications of rectifier diode array.


  • Rectifier for drives applications
  • Crowbar applications
  • Rectifiers for UBS
  • Battery chargers
  • Rectifiers in switch mode power supplies (SMPS)
  • Free wheeling diode in low voltage converters
  • General Rectification
