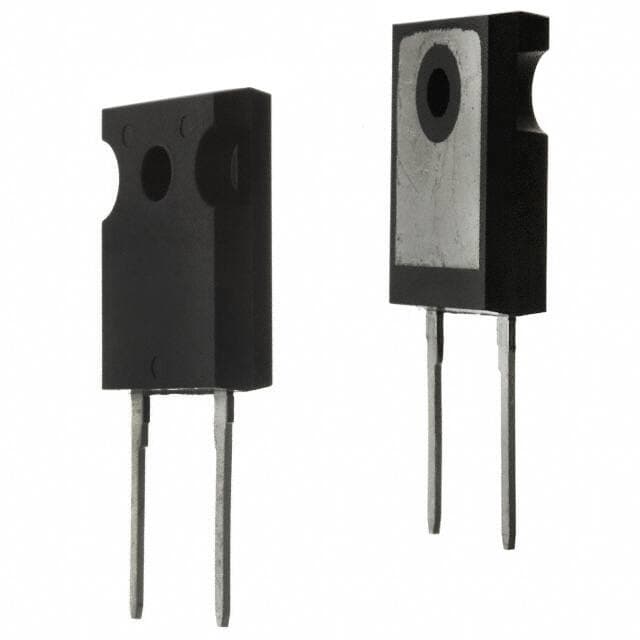

LITTELFUSE DSEI120-12A

Manufacturer No:

DSEI120-12A

Manufacturer:

LITTELFUSE

Package:

TO-247-2

Description:

Standard Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 1.8V @ 70A -40°C~150°C 3mA @ 1200V 2-Termination Tube TO-247-2 Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DSEI120-12A information

LITTELFUSE DSEI120-12A technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE DSEI120-12A.

Type
Parameter

Factory Lead Time
20 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-247-2

Number of Pins
2

Diode Element Material
SILICON

Packaging
Tube

Published
2000

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Max Operating Temperature
150°C

Min Operating Temperature
-40°C

HTS Code
8541.10.00.80

Subcategory
Rectifier Diodes

Pin Count
3

Number of Elements
1

Power Dissipation-Max
357W

Element Configuration
Single

Speed
Fast Recovery =< 500ns, > 200mA (Io)

Diode Type
Standard

Current - Reverse Leakage @ Vr
3mA @ 1200V

Case Connection
CATHODE

Forward Current
109A

Operating Temperature - Junction
-40°C~150°C

Max Surge Current
660A

Voltage - DC Reverse (Vr) (Max)
1200V

Forward Voltage
1.8V

Max Reverse Voltage (DC)
1.2kV

Average Rectified Current
75A

Number of Phases
1

Reverse Recovery Time
60 ns

Peak Reverse Current
3mA

Max Repetitive Reverse Voltage (Vrrm)
1.2kV

Peak Non-Repetitive Surge Current
660A

Reverse Voltage
1.2kV

Max Forward Surge Current (Ifsm)
660A

Recovery Time
60 ns

Height
21.46mm

Length
16.26mm

Width
5.3mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for LITTELFUSE DSEI120-12A.

Datasheets:

ixys-dsei12012a-datasheets-8880.pdf

DSEI120-12A Description

DSEI120-12A is a fast recovery epitaxial diode(FRED). FRED is a high-performance fast diode prepared by epitaxial wafers and the ion implantation process with faster switching speed, smaller recovery charge Qrr, and reverses recovery current IRRM, more accurate parameters, less switching loss, and better softness. It is often used as a follow current, absorption, clamping, isolation, and output and input rectifier for the switching components of high-frequency inverter components to maximize the capabilities of the switching components.

DSEI120-12A Features

International standard package JEDEC TO-247 AD

Planar passivated chips

Very short recovery time

Extremely low switching losses

Low IRM-values

Soft recovery behavior

Epoxy meets UL 94V-0

DSEI120-12A Applications

Antiparallel diode for high-frequency switching devices

Anti saturation diode

Snubber diode

Freewheeling diode in converters and motor control circuits

Rectifiers in switch mode power supplies (SMPS)

Inductive heating and melting

Uninterruptible power supplies (UPS)

Ultrasonic cleaners and welders
