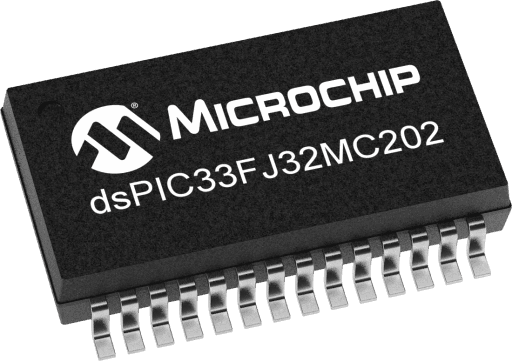

Microchip DSPIC33FJ32MC202T-E/SO

Manufacturer No:

DSPIC33FJ32MC202T-E/SO

Manufacturer:

Microchip

Package:

Description:

40 MIPS, 32KB Flash, 2KB RAM, 28 pins, Motor Control

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DSPIC33FJ32MC202T-E/SO information

Microchip DSPIC33FJ32MC202T-E/SO technical specifications, attributes, parameters and parts with similar specifications to Microchip DSPIC33FJ32MC202T-E/SO.

Type
Parameter

CPU Type
dsPIC® DSC

CPU Speed Max MHz (megahertz)
40

Program Memory Size (KB)
32

Multiple Flash Panels
No

Direct Memory Access (DMA) Channels
0

Temp. Range Min.(C°)
-40

Temp. Range Max.(C°)
150

Operation Voltage Min.(V)
3

Operation Voltage Max.(V)
3.6

Pin Count
28

Low Power
No

Number of Comparators
0

ADC Modules
1

ADC Channels
6

ADC Resolution Max
12

ADC Sampling Rate (ksps)
1100

Number of DACs
0

DAC outputs
0

Max DAC Resolution (bits)
0

Hardware RTCC
No

Motor Control PWM Channels
8

SMPS PWM Channels
0

Number of PWM Time Bases
3

Output Compare Channels
4

Number of CAN Modules
0

Type of CAN module Max
None

Crypto Engine
No

Quadrature Encoder Interface (QEI)
1

Segment LCD
0

LCD/Graphics Interface
No

Configurable Logic Cell Modules (CLC /CCL)
0

Peripheral Pin Select (PPS)/Pin Muxing
Yes

Download datasheets and manufacturer documentation for Microchip DSPIC33FJ32MC202T-E/SO.

16-bit Motor Control family dsPIC33F Digital Signal Controller in low-pin count packages featuring 2 PWM generators with independent timebases and the new Peripheral Pin Select capability. Seamless migration options from and to the PIC24F, PIC24H, dsPIC30F & dsPIC33F product families for this device.

Up to 40 MIPS operation (@ 3.0-3.6V)
Industrial temperature range (-40°C to +85°C)
Extended temperature range (-40°C to +125°C)
High temperature range (-40°C to +150°C)

Modified Harvard architecture
C compiler optimized instruction set
16-bit wide data path
24-bit wide instructions
Linear program memory addressing up to 4M instruction words
Linear data memory addressing up to 64 Kbytes
83 base instructions: mostly 1 word/1 cycle
Two 40-bit accumulators with rounding and saturation options
Flexible and powerful addressing modes: Indirect, Modulo and Bit-reversed software stack
16 x 16 fractional/integer multiply operations
32/16 and 16/16 divide operations
Single-cycle multiply and accumulate:
Accumulator write back for DSP operations
Dual data fetch
Up to ±16-bit shifts for up to 40-bit data

Timer/Counters, up to three 16-bit timers
Can pair up to make one 32-bit timer, 1 timer runs as Real-Time Clock with external 32.768 kHz oscillator, and Programmable prescaler
Input Capture (up to 4 channels): Capture on up, down or both edges, 16-bit capture input functions and 4-deep FIFO on each capture
Output Compare (up to 2 channels): Single or Dual 16-Bit Compare mode and 16-bit Glitchless PWM mode

5-cycle latency, 118 interrupt vectors, Up to 26 available interrupt sources
Up to 3 external interrupts, 7 programmable priority levels, and 4 processor exceptions

Peripheral pin Select functionality
Up to 35 programmable digital I/O pins
Wake-up/Interrupt-on-Change for up to 21 pins
Output pins can drive from 3.0V to 3.6V
Up to 5V output with open drain configuration
All digital input pins are 5V tolerant
4 mA sink on all I/O pins

Flash program memory (up to 32 Kbytes)
Data SRAM (2 Kbytes)
Boot and General Security for program Flash

Flexible clock options: External, crystal, resonator, internal RC
Fully integrated Phase-Locked Loop (PLL) and Extremely low jitter PLL
Power-up Timer
Oscillator Start-up Timer/Stabilizer
Watchdog Timer with its own RC oscillator
Fail-Safe Clock Monitor
Reset by multiple sources

On-chip 2.5V voltage regulator
Switch between clock sources in real time
Idle, Sleep and Doze modes with fast wake-up

6-channel 16-bit Motor Control PWM
3 duty cycle generators
Independent or Complementary mode
Programmable dead time and output polarity
Edge-aligned or center-aligned
Manual output override control
1 Fault input
Trigger for ADC conversions
PWM frequency for 16-bit resolution (@ 40 MIPS) = 1220 Hz for Edge-Aligned mode, 610 Hz for Center-Aligned mode
PWM frequency for 11-bit resolution (@ 40 MIPS) = 39.1 kHz for Edge-Aligned mode, 19.55 kHz for Center-Aligned mode
2-channel 16-bit Motor Control PWM:
1 duty cycle generator
Independent or Complementary mode
Programmable dead time and output polarity
Edge-aligned or center-aligned
Manual output override control
1 Fault input
Trigger for ADC conversions
PWM frequency for 16-bit resolution (@ 40 MIPS) = 1220 Hz for Edge-Aligned mode, 610 Hz for Center-Aligned mode
PWM frequency for 11-bit resolution (@ 40 MIPS) = 39.1 kHz for Edge-Aligned mode, 19.55 kHz for Center-Aligned mode
Quadrature Encoder Interface module:
Phase A, Phase B and index pulse input
16-bit up/down position counter
Count direction status
Position Measurement (x2 and x4) mode
Programmable digital noise filters on inputs
Alternate 16-bit Timer/Counter mode
Interrupt on position counter rollover/underflow

10-bit, 1.1 Msps or 12-bit, 500 Ksps conversion
2 and 4 simultaneous samples (10-bit ADC)
Up to 6 input channels with auto-scanning
Conversion start can be manual or synchronized with 1 of 4 trigger sources
Conversion possible in Sleep mode
±2 LSb max integral nonlinearity
±1 LSb max differential nonlinearity

Low-power, high-speed Flash technology
Fully static design
3.3V (±10%) operating voltage
Industrial and Extended temperature
Low power consumption

4-wire SPI:
Framing supports I/O interface to simple codecs
Supports 8-bit and 16-bit data
Supports all serial clock formats and sampling modes
I2C™: Full Multi-Master Slave mode support

User Guide
