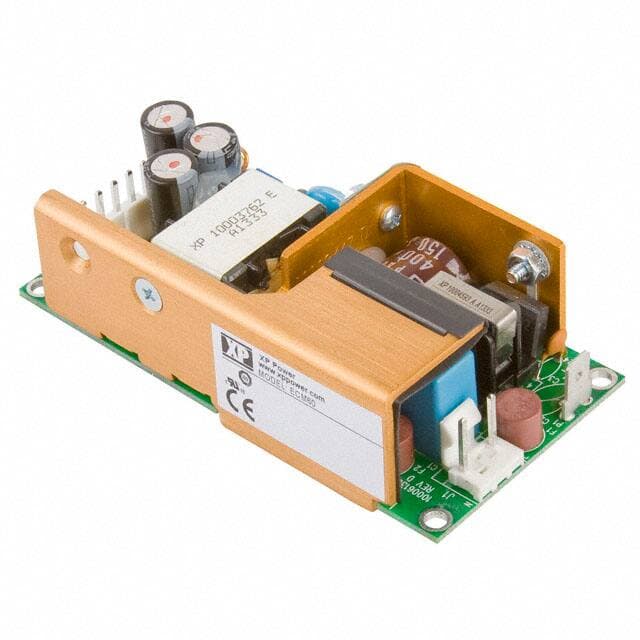

XP Power ECM60UT33
XP Power ECM60UT33

XP Power ECM60UT33

Manufacturer No:

ECM60UT33

Manufacturer:

XP Power

Package:

Description:

AC/DC CONVERTER 5V +/-15V 60W

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ECM60UT33 information

XP Power ECM60UT33 technical specifications, attributes, parameters and parts with similar specifications to XP Power ECM60UT33.

  • Type
  • Parameter
  • Mfr
  • XP Power
  • Series
  • ECM (60W)
  • Package
  • Box
  • Product Status
  • Active
  • Type
  • Open Frame
  • Number of Outputs
  • 3
  • Voltage - Input
  • 90 ~ 264 VAC
  • Voltage - Output 1
  • 5V
  • Voltage - Output 2
  • 15V
  • Voltage - Output 3
  • -15V
  • Current - Output 1
  • 8 A
  • Current - Output 2
  • 2.5 A
  • Current - Output 3
  • 500 mA
  • Power (Watts)
  • 60W
  • Applications
  • ITE (Commercial), Medical
  • Voltage - Isolation
  • 4 kV
  • Operating Temperature
  • 0°C ~ 70°C (With Derating)
  • Features
  • Adjustable Output, Universal Input
  • Mounting Type
  • Chassis Mount
  • Size / Dimension
  • 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm)
  • Approval Agency
  • CB, CE
  • Standard Number
  • 62368-1
  • Minimum Load Required
  • Yes
  • Base Product Number
  • ECM60

Download datasheets and manufacturer documentation for XP Power ECM60UT33.

Datasheets:

Environmental Information:

ECM60UT33 Description


The ECM range of single and multiple output AC-DC, 40-60 W power supplies from XP has the smallest footprint in the world for units with these ratings and is approved for Class I and Class II applications. Both are only 1.2" (30.48 mm) high and 2" x 4" (50.8 mm x 101.6 mm) in size. The maximum leakage currents for these high-density power supplies are 100 A at 115 VAC or 200 A at 230 VAC, respectively, and they also fulfill EN55032 Level B conducted emissions. As a result, there is no price premium for these switchers to meet medical criteria, making them equally suited for industrial, IT, and medical applications.

The single-output versions of the ECM40-60 series range from 5 V to 48 VDC and are ±10% programmable. Dual and triple output versions of the ECM40-60 series cover combinations of 3.3 V, 5 V, 12 V, 15 V, and 24 V. They are dual-fused to comply with IEC60601-1 and depending on the type, their efficiency ranges from 80 to 85%, generating very little extra heat.

The power supplies run at up to +70 °C with derating and only 5 CFM of cooling, and they give their full power between 0 °C and +50 °C. There is built-in comprehensive overvoltage, overload, and short circuit protection. There are available covers, looms, and connector kits.



ECM60UT33 Features


  • Level B Conducted Emissions

  • EN61000 Compliant

  • Universal AC Input 90-264 VAC

  • Input Frequency 47-63 & 440 Hz

  • Single & Multiple Outputs

  • Cover Kits Available

  • Mating Connector & Loom Kits Available

  • 40 & 60 Watt Models

  • Small Size 2.0”x 4.0”x 1.2”

  • Low Leakage Current

  • Industrial & Medical Approvals

  • Full Load Available Convection Cooled

  • Wide Operating Temperature 0 °C to +70 °C



ECM60UT33 Applications


  • Industrial

  • IT

  • Medical applications
