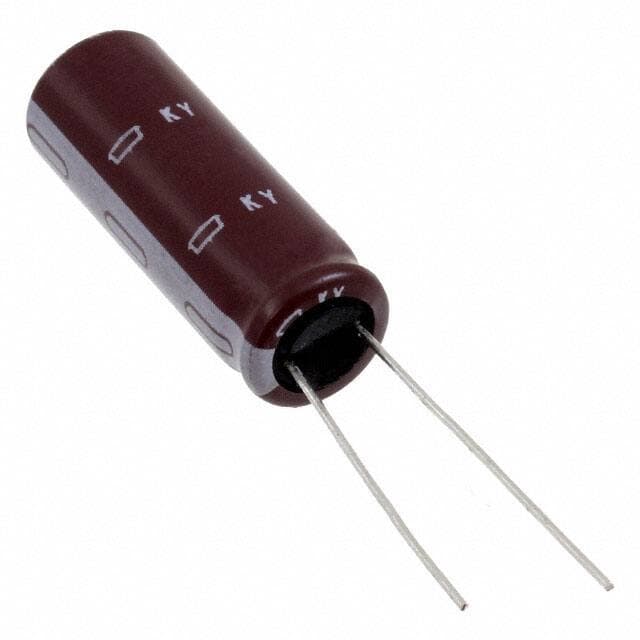

United Chemi-Con EKY-630ELL471MK30S

Manufacturer No:

EKY-630ELL471MK30S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

KY 470?F Capacitor ±20% Bulk Through Hole 2.3A 0.492Dia 12.50mm -40°C~105°C Polar 5.0038mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EKY-630ELL471MK30S information

United Chemi-Con EKY-630ELL471MK30S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EKY-630ELL471MK30S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
KY

Published
2014

Size / Dimension
0.492Dia 12.50mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Applications
General Purpose

Capacitance
470?F

Voltage - Rated DC
63V

Lead Pitch
5.0038mm

Lead Spacing
0.197 5.00mm

Lead Diameter
600 ?m

Lifetime @ Temp
10000 Hrs @ 105°C

Ripple Current
2.3A

Polarization
Polar

Life (Hours)
10000 hours

Impedance
28mOhm

Ripple Current @ High Frequency
2.3A @ 100kHz

Height Seated (Max)
1.240 31.50mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for United Chemi-Con EKY-630ELL471MK30S.

Datasheets:

unitedchemicon-eky500ell102mk40s-datasheets-0989.pdf

EKY-630ELL471MK30S Overview

During full charge, the ripple current is 2.3A @ 100kHz.When the battery is charged to its lowest level, the ripple current is 1.15A @ 120Hz.You should keep the height of the seat (Max) below 1.240 31.50mm.Rated DC voltage of 63V is used to operate this capacitor.If you want high efficiency, you should keep the operating temperature at -40°C~105°C.

EKY-630ELL471MK30S Features

the ripple current is 2.3A @ 100kHz.
the ripple current is 1.15A @ 120Hz.
voltage - Rated DC of 63V
an operating temperature of -40°C~105°C

EKY-630ELL471MK30S Applications

There are a lot of United Chemi-Con
EKY-630ELL471MK30S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
