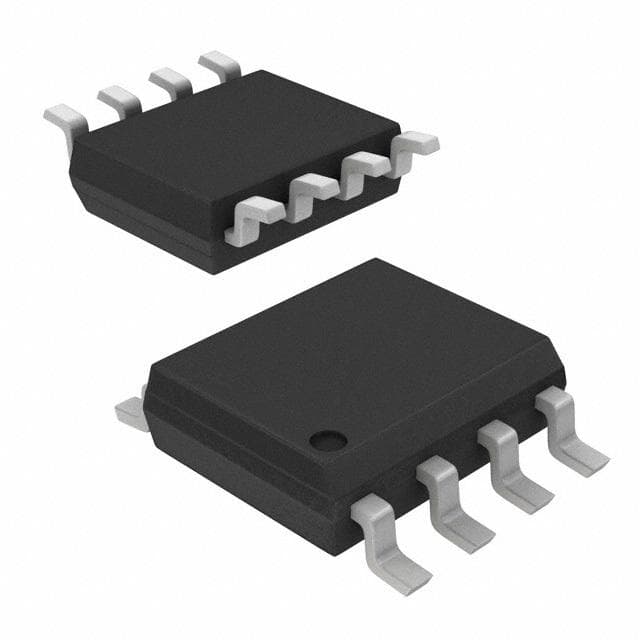

Renesas EL2244CSZ

Manufacturer No:

EL2244CSZ

Manufacturer:

Renesas

Package:

SOIC

Description:

75mA per Channel 2.8?A 70 dB Instrumentational OP Amps 8 Pins SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL2244CSZ information

Renesas EL2244CSZ technical specifications, attributes, parameters and parts with similar specifications to Renesas EL2244CSZ.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
8

Published
2002

JESD-609 Code
e3

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Operational Amplifier

Technology
BIPOLAR

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
8

Qualification Status
Not Qualified

Temperature Grade
INDUSTRIAL

Number of Circuits
2

Max Supply Voltage
36V

Operating Supply Current
5.2mA

Slew Rate
325 V/?s

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
70 dB

Current - Input Bias
2.8?A

Output Current per Channel
75mA

Input Offset Voltage (Vos)
500?V

Gain Bandwidth Product
45MHz

Voltage Gain
61.58dB

Power Supply Rejection Ratio (PSRR)
65dB

Max Dual Supply Voltage
18V

-3db Bandwidth
120MHz

Min Dual Supply Voltage
2V

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL2244CSZ.

Datasheets:

intersil-el2244csz-datasheets-6563.pdf

EL2244CSZ Overview

The linear amplifier is packaged in a SOIC case. This is a OPERATIONAL AMPLIFIER type op amp. The number of terminations approaches 8. Buffer amplifier has a total of 8 pins. To be specific, this instrumentation amplifier is a type of Operational Amplifier. The buffer op amp includes 8 pins. Regarding input offset voltage, op amp rates 500?V. This op amp can operate from a supply current at 5.2mA. It is a member of the 61.58dB's 61.58dB family. There are 2 circuits on this op amp. The temperature should not be lower than -40°C for operational amplifier ics to operate. Use op amps only at temperatures no higher than 85°C. With regard to the supply voltage, this electrical component is capable of working from under 36V. It is advised to keep the op amp's supply voltage higher than 2.5V. You should conduct this electronic component under the dual supply voltage of 18V.

EL2244CSZ Features

8 Pins
61.58dB voltage gain

EL2244CSZ Applications

There are a lot of Intersil (Renesas Electronics America)
EL2244CSZ Instrumentational OP Amps applications.

Inverse/same-phase proportional circuit
Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
