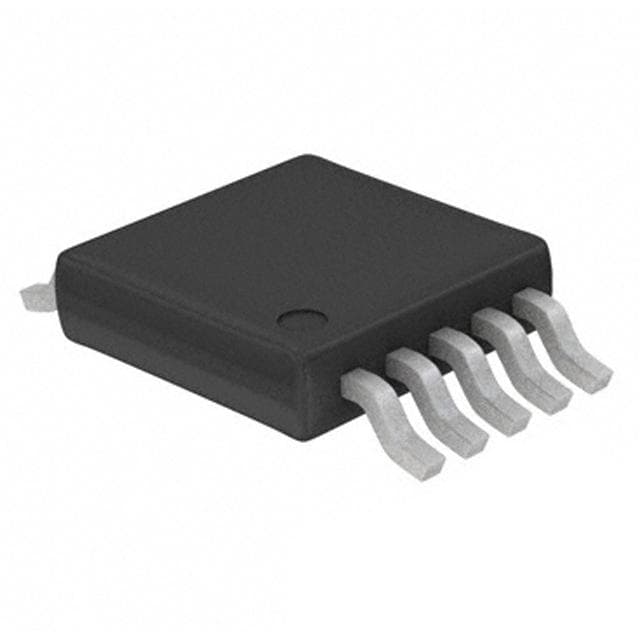

Renesas EL5246CYZ-T7

Manufacturer No:

EL5246CYZ-T7

Manufacturer:

Renesas

Package:

MSOP

Description:

2 Channels 120mA per Channel 2nA Instrumentational OP Amps 10 Pins MSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5246CYZ-T7 information

Renesas EL5246CYZ-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5246CYZ-T7.

Type
Parameter

Mount
Surface Mount

Package / Case
MSOP

Number of Pins
10

Packaging
Tape & Reel (TR)

Published
2002

JESD-609 Code
e3

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
10

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
10

Qualification Status
Not Qualified

Temperature Grade
INDUSTRIAL

Supply Voltage-Min (Vsup)
4.75V

Number of Channels
2

Operating Supply Current
7mA

Current - Input Bias
2nA

Output Current per Channel
120mA

Input Offset Voltage (Vos)
25mV

Bandwidth
100000 kHz

Gain Bandwidth Product
60MHz

-3db Bandwidth
100MHz

Consumer IC Type
VIDEO AMPLIFIER

Length
3mm

Height Seated (Max)
1.1mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas EL5246CYZ-T7.

Datasheets:

intersil-el5246cyzt7-datasheets-5475.pdf

EL5246CYZ-T7 Overview

There is a MSOP case package that contains the instrumentation amplifiers. Upon delivery, op amp ic is packaged in a Tape & Reel (TR) case. We are approaching the 10h termination of the year. In total, there are 10 pins on this op amp ic. 10 pins are located on the operational amplifiers. The input offset voltage is 25mV. The buffer amplifier is capable of operating from a supply current of 7mA . On the buffer amps, there are 2 channels that can be used. For this linear amplifier to work, the temperature should not be below -40°C. In order to avoid damage to the product, operational amplifiers should only be used at temperatures below 85°C. Using VIDEO AMPLIFIER, you can sort the electronic part based on the type of consumer IC that is included.

EL5246CYZ-T7 Features

10 Pins

EL5246CYZ-T7 Applications

There are a lot of Intersil (Renesas Electronics America)
EL5246CYZ-T7 Instrumentational OP Amps applications.

Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
