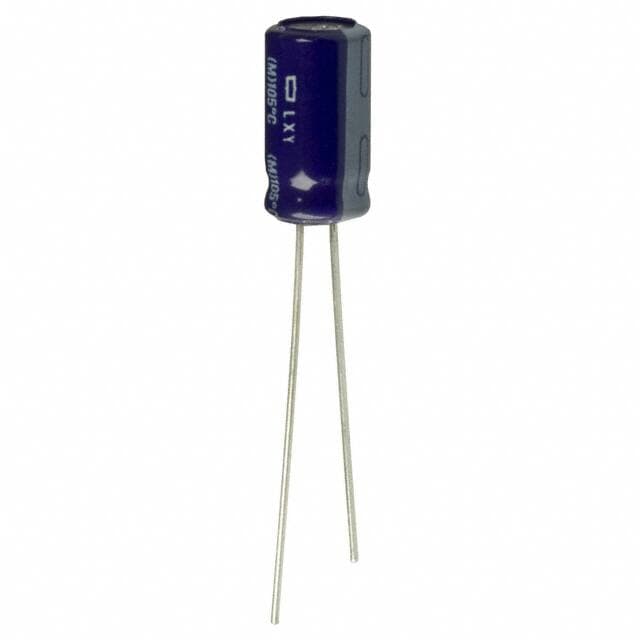

United Chemi-Con ELXY350ELL560MFB5D
United Chemi-Con ELXY350ELL560MFB5D

United Chemi-Con ELXY350ELL560MFB5D

Manufacturer No:

ELXY350ELL560MFB5D

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

LXY 56?F Capacitor ±20% Bulk Through Hole 273mA 0.248Dia 6.30mm -55°C~105°C Polar 2.5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ELXY350ELL560MFB5D information

United Chemi-Con ELXY350ELL560MFB5D technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con ELXY350ELL560MFB5D.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Bulk
  • Series
  • LXY
  • Published
  • 2008
  • Size / Dimension
  • 0.248Dia 6.30mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Termination
  • Radial
  • Applications
  • Automotive
  • Capacitance
  • 56?F
  • Voltage - Rated DC
  • 35V
  • Lead Pitch
  • 2.5mm
  • ESR (Equivalent Series Resistance)
  • 350mOhm
  • Lead Spacing
  • 0.098 2.50mm
  • Lifetime @ Temp
  • 2000 Hrs @ 105°C
  • Ripple Current
  • 273mA
  • Polarization
  • Polar
  • Impedance
  • 350mOhm
  • Ripple Current @ Low Frequency
  • 109.2mA @ 120Hz
  • Ripple Current @ High Frequency
  • 273mA @ 100kHz
  • Diameter
  • 6.3mm
  • Height
  • 11.5mm
  • Height Seated (Max)
  • 0.512 13.00mm
  • REACH SVHC
  • Unknown
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free
  • Ratings
  • AEC-Q200

Download datasheets and manufacturer documentation for United Chemi-Con ELXY350ELL560MFB5D.

Datasheets:

ELXY350ELL560MFB5D Overview


Full charge results in a ripple current of 273mA @ 100kHz.350mOhm must have the ESR (Equivalent Series Resistance) to function properly.The ripple current at the lowest charge is 109.2mA @ 120Hz.Keeping the maximum height of the seated person (Max) below 0.512 13.00mm is recommended.Rated DC voltage is 35V for this capacitor.High efficiency requires an operating temperature of -55°C~105°C.

ELXY350ELL560MFB5D Features


the ripple current is 273mA @ 100kHz.
the ripple current is 109.2mA @ 120Hz.
voltage - Rated DC of 35V
an operating temperature of -55°C~105°C


ELXY350ELL560MFB5D Applications


There are a lot of United Chemi-Con
ELXY350ELL560MFB5D applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
