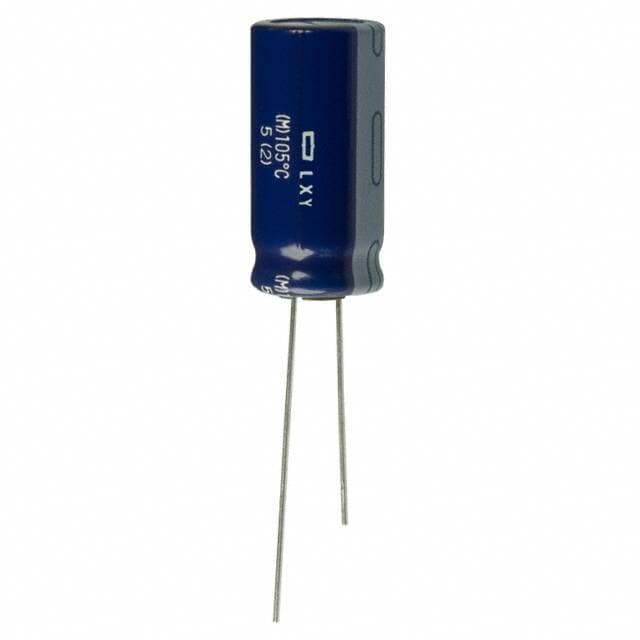

United Chemi-Con ELXY500ELL471MK25S
United Chemi-Con ELXY500ELL471MK25S

United Chemi-Con ELXY500ELL471MK25S

Manufacturer No:

ELXY500ELL471MK25S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

LXY 470?F Capacitor ±20% Bulk Through Hole 1.49A 0.492Dia 12.50mm -55°C~105°C Polar 5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ELXY500ELL471MK25S information

United Chemi-Con ELXY500ELL471MK25S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con ELXY500ELL471MK25S.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Bulk
  • Series
  • LXY
  • Published
  • 2009
  • Size / Dimension
  • 0.492Dia 12.50mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Termination
  • Radial
  • Applications
  • Automotive
  • Capacitance
  • 470?F
  • Voltage - Rated DC
  • 50V
  • Lead Pitch
  • 5mm
  • ESR (Equivalent Series Resistance)
  • 44mOhm
  • Lead Spacing
  • 0.197 5.00mm
  • Lead Diameter
  • 600 ?m
  • Lifetime @ Temp
  • 7000 Hrs @ 105°C
  • Polarization
  • Polar
  • Life (Hours)
  • 7000 hours
  • Impedance
  • 44mOhm
  • Ripple Current @ Low Frequency
  • 745mA @ 120Hz
  • Ripple Current @ High Frequency
  • 1.49A @ 100kHz
  • Diameter
  • 12.5mm
  • Height
  • 25mm
  • Height Seated (Max)
  • 1.043 26.50mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free
  • Ratings
  • AEC-Q200

Download datasheets and manufacturer documentation for United Chemi-Con ELXY500ELL471MK25S.

Datasheets:

ELXY500ELL471MK25S Overview


A full charge has a ripple current of 1.49A @ 100kHz volts.In order to fully utilize 44mOhm, ESR (Equivalent Series Resistance) needs to be provided.In the lowest charge, the ripple current is 745mA @ 120Hz.Sitting height should not exceed 1.043 26.50mm (Max).A voltage of 50V DC operates this capacitor.Maintaining -55°C~105°C as the operating temperature will maximize efficiency.

ELXY500ELL471MK25S Features


the ripple current is 1.49A @ 100kHz.
the ripple current is 745mA @ 120Hz.
voltage - Rated DC of 50V
an operating temperature of -55°C~105°C


ELXY500ELL471MK25S Applications


There are a lot of United Chemi-Con
ELXY500ELL471MK25S applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
