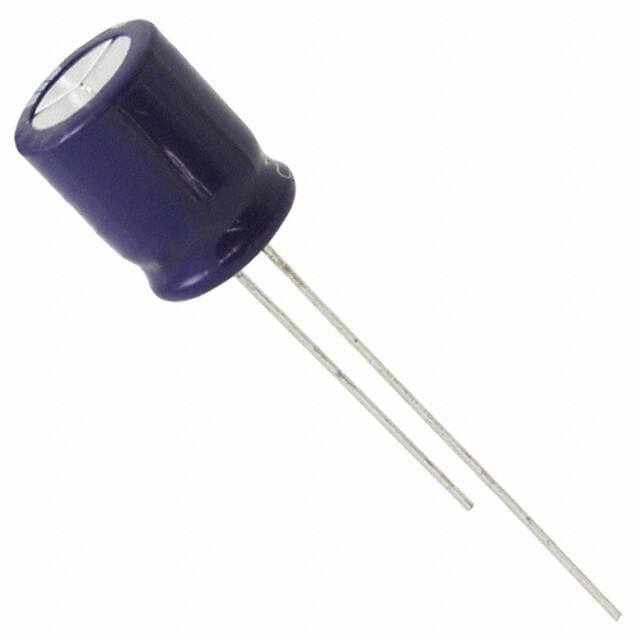

United Chemi-Con ELXY500ELL820MJC5S

Manufacturer No:

ELXY500ELL820MJC5S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

LXY 82?F Capacitor ±20% Bulk Through Hole 480mA 0.394Dia 10.00mm -55°C~105°C Polar 5.0038mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ELXY500ELL820MJC5S information

United Chemi-Con ELXY500ELL820MJC5S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con ELXY500ELL820MJC5S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Dielectric Material
Aluminium

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
LXY

Published
2004

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Radial

Applications
Automotive

Capacitance
82?F

Voltage - Rated DC
50V

Lead Pitch
5.0038mm

Lead Spacing
0.197 5.00mm

Lifetime @ Temp
5000 Hrs @ 105°C

Ripple Current
480mA

Polarization
Polar

Life (Hours)
5000 hours

Ripple Current @ Low Frequency
192mA @ 120Hz

Ripple Current @ High Frequency
480mA @ 100kHz

Diameter
10mm

Height
12.5mm

Height Seated (Max)
0.551 14.00mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Ratings
AEC-Q200

Download datasheets and manufacturer documentation for United Chemi-Con ELXY500ELL820MJC5S.

Datasheets:

unitedchemicon-elxy250ell121mf15d-datasheets-4216.pdf

ELXY500ELL820MJC5S Overview

A full charge has a ripple current of 480mA @ 100kHz volts.In the lowest charge, the ripple current is 192mA @ 120Hz.Sitting height should not exceed 0.551 14.00mm (Max).A voltage of 50V DC operates this capacitor.Maintaining -55°C~105°C as the operating temperature will maximize efficiency.

ELXY500ELL820MJC5S Features

the ripple current is 480mA @ 100kHz.
the ripple current is 192mA @ 120Hz.
voltage - Rated DC of 50V
an operating temperature of -55°C~105°C

ELXY500ELL820MJC5S Applications

There are a lot of United Chemi-Con
ELXY500ELL820MJC5S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
