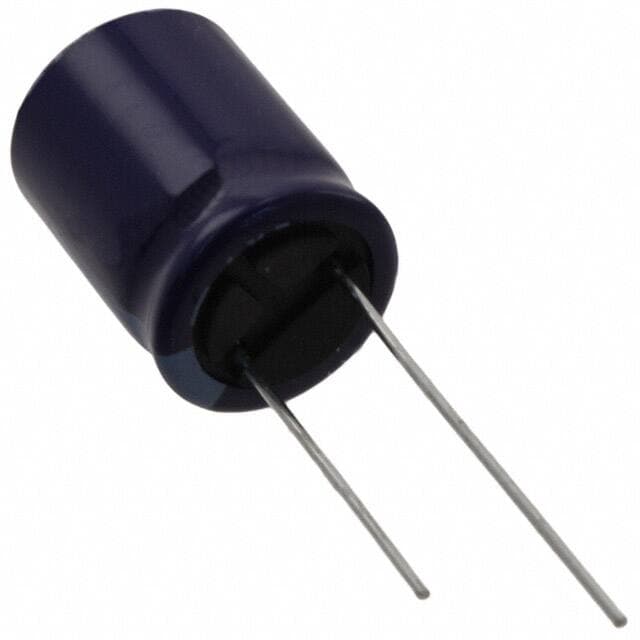

United Chemi-Con ELXZ630ELL471ML20S

Manufacturer No:

ELXZ630ELL471ML20S

Manufacturer:

United Chemi-Con

Package:

Radial, Can

Description:

LXZ 470?F Capacitor ±20% Bulk Through Hole 1.77A 0.630Dia 16.00mm -55°C~105°C Polar 7.5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ELXZ630ELL471ML20S information

United Chemi-Con ELXZ630ELL471ML20S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con ELXZ630ELL471ML20S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Dielectric Material
Aluminium

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
LXZ

Published
1998

Size / Dimension
0.630Dia 16.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
Radial

Applications
Automotive

Capacitance
470?F

Voltage - Rated DC
63V

Lead Pitch
7.5mm

ESR (Equivalent Series Resistance)
59mOhm

Lead Spacing
0.295 7.50mm

Lead Diameter
800 ?m

Lifetime @ Temp
8000 Hrs @ 105°C

Ripple Current
1.77A

Life (Hours)
8000 hours

Impedance
59mOhm

Ripple Current @ Low Frequency
885mA @ 120Hz

Ripple Current @ High Frequency
1.77A @ 100kHz

Diameter
16mm

Height
20mm

Height Seated (Max)
0.787 20.00mm

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Ratings
AEC-Q200

Download datasheets and manufacturer documentation for United Chemi-Con ELXZ630ELL471ML20S.

Datasheets:

unitedchemicon-elxz350ell392mm40s-datasheets-9114.pdf

ELXZ630ELL471ML20S Overview

Ripple current at full charge is 1.77A @ 100kHz.For 59mOhm to fully function, the equivalent series resistance has to be provided.It is 885mA @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 0.787 20.00mm.Voltage - Rated DC - is 63V.It is recommended that the operating temperature be kept at -55°C~105°C to achieve high efficiency.

ELXZ630ELL471ML20S Features

the ripple current is 1.77A @ 100kHz.
the ripple current is 885mA @ 120Hz.
voltage - Rated DC of 63V
an operating temperature of -55°C~105°C

ELXZ630ELL471ML20S Applications

There are a lot of United Chemi-Con
ELXZ630ELL471ML20S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
