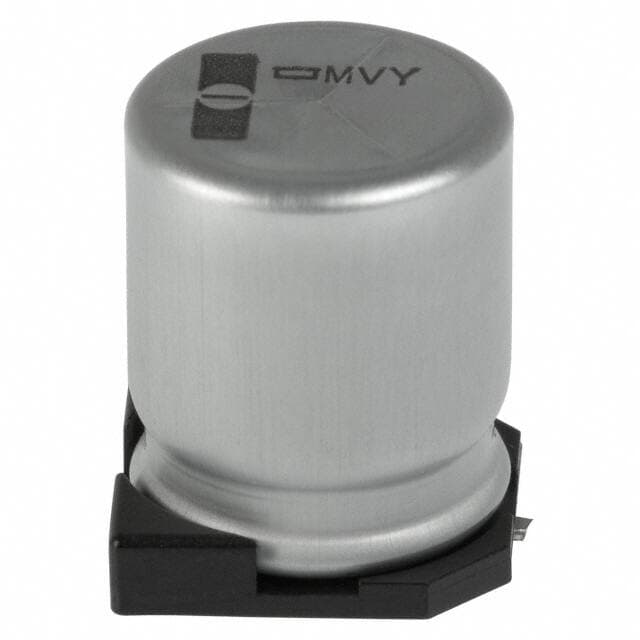

United Chemi-Con EMVY630GDA221MLH0S

Manufacturer No:

EMVY630GDA221MLH0S

Manufacturer:

United Chemi-Con

Package:

Radial, Can - SMD

Description:

Alchip?- MVY 220?F Capacitor ±20% Tape & Reel (TR) Surface Mount 845mA 0.630Dia 16.00mm -55°C~105°C Polar Radial, Can - SMD

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EMVY630GDA221MLH0S information

United Chemi-Con EMVY630GDA221MLH0S technical specifications, attributes, parameters and parts with similar specifications to United Chemi-Con EMVY630GDA221MLH0S.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
Radial, Can - SMD

Dielectric Material
Aluminium

Surface Mount Land Size
0.669Lx0.669W 17.00mmx17.00mm

Operating Temperature
-55°C~105°C

Packaging
Tape & Reel (TR)

Series
Alchip?- MVY

Published
2004

Size / Dimension
0.630Dia 16.00mm

Tolerance
±20%

Pbfree Code
yes

Part Status
Active

Termination
SMD/SMT

Applications
General Purpose

Capacitance
220?F

Voltage - Rated DC
63V

Lifetime @ Temp
5000 Hrs @ 105°C

Ripple Current
845mA

Polarization
Polar

Life (Hours)
5000 hours

Impedance
120mOhm

Ripple Current @ Low Frequency
422.5mA @ 120Hz

Diameter
16mm

Height
16.25mm

Height Seated (Max)
0.650 16.50mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for United Chemi-Con EMVY630GDA221MLH0S.

Datasheets:

unitedchemicon-emvy350gda222mmn0s-datasheets-1699.pdf

unitedchemicon-emvy630gda221mlh0s-datasheets-1672.pdf

unitedchemicon-emvy630gda221mlh0s-datasheets-1673.pdf

EMVY630GDA221MLH0S Overview

Full charge results in a ripple current of 845mA @ 100kHz.The ripple current at the lowest charge is 422.5mA @ 120Hz.Keeping the maximum height of the seated person (Max) below 0.650 16.50mm is recommended.Rated DC voltage is 63V for this capacitor.High efficiency requires an operating temperature of -55°C~105°C.

EMVY630GDA221MLH0S Features

the ripple current is 845mA @ 100kHz.
the ripple current is 422.5mA @ 120Hz.
voltage - Rated DC of 63V
an operating temperature of -55°C~105°C

EMVY630GDA221MLH0S Applications

There are a lot of United Chemi-Con
EMVY630GDA221MLH0S applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
