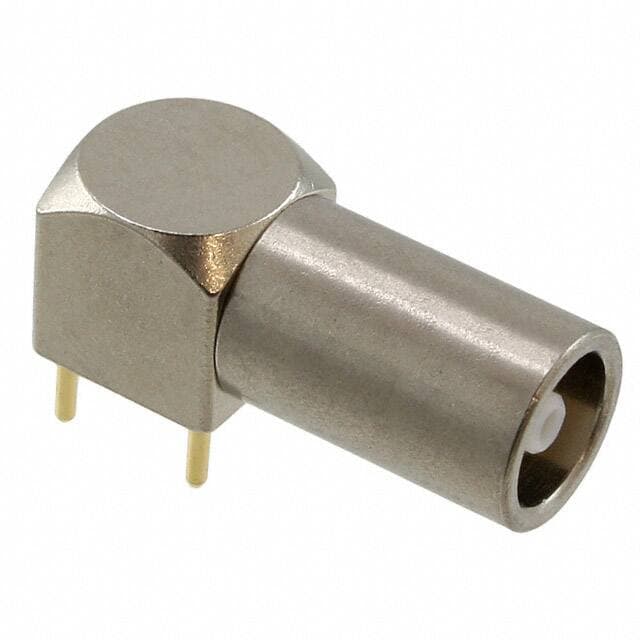

LEMO EPL.00.250.NTN
LEMO EPL.00.250.NTN

LEMO EPL.00.250.NTN

Manufacturer No:

EPL.00.250.NTN

Manufacturer:

LEMO

Package:

Description:

Receptacle, Female Socket Push-Pull 50Ohm Bulk NIM-CAMAC CD/N 549 Solder 1 Port Polytetrafluoroethylene (PTFE) -55°C~260°C

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EPL.00.250.NTN information

LEMO EPL.00.250.NTN technical specifications, attributes, parameters and parts with similar specifications to LEMO EPL.00.250.NTN.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Contact Material
  • Brass, Bronze
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole, Right Angle
  • Insulation Material
  • Teflon
  • Dielectric Material
  • Polytetrafluoroethylene (PTFE)
  • Body Material
  • Brass
  • Center Contact Plating
  • Gold
  • Center Contact Material
  • Bronze
  • Operating Temperature
  • -55°C~260°C
  • Packaging
  • Bulk
  • Series
  • 00
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • ECCN Code
  • EAR99
  • Connector Type
  • Receptacle, Female Socket
  • Gender
  • Female
  • Additional Feature
  • WTH LATCH
  • HTS Code
  • 8544
  • Fastening Type
  • Push-Pull
  • Voltage - Rated DC
  • 700V
  • Contact Finish - Mating
  • NOT SPECIFIED
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • Filter Feature
  • NO
  • Option
  • GENERAL PURPOSE
  • Orientation
  • Straight
  • Ingress Protection
  • IP50 - Dust Protected
  • Reach Compliance Code
  • not_compliant
  • Current Rating
  • 4A
  • Voltage - Rated AC
  • 700V
  • Housing Color
  • Silver
  • Polarity
  • Standard
  • Contact Resistance
  • 5.6mOhm
  • Insulation Resistance
  • 1.012kOhm
  • Coupling Type
  • SNAP
  • Impedance
  • 50Ohm
  • Connector Style
  • NIM-CAMAC CD/N 549
  • Number of Ports
  • 1
  • Mating Cycles
  • 5000
  • Contact Termination
  • Solder
  • Body Finish
  • Nickel
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for LEMO EPL.00.250.NTN.

Datasheets:

Environmental Information:

PCN Assembly/Origin:

ConflictMineralStatement:

EPL.00.250.NTN Overview


The product is packaged in Receptacle, Female Socket.Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the 00 Series, it can be found in this category.There are also other features such as WTH LATCH, to name only a few.A variety of tasks can be managed via its 1 ports.In this case, Through Hole mounts the part.The device is operating at -55°C~260°C Operating Temperature.

EPL.00.250.NTN Features


00 series


EPL.00.250.NTN Applications


There are a lot of LEMO
EPL.00.250.NTN Coaxial Connectors applications.


  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
